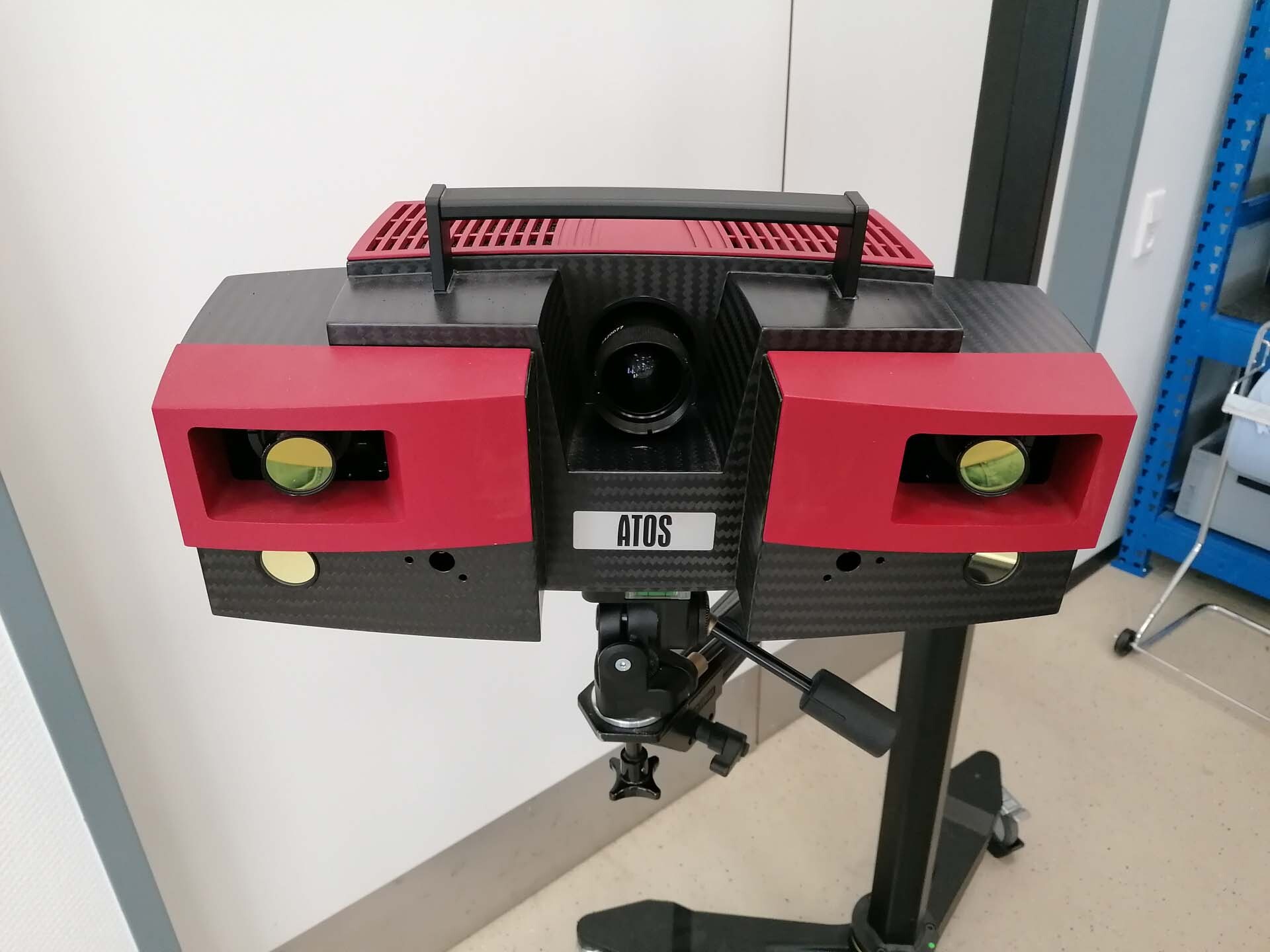

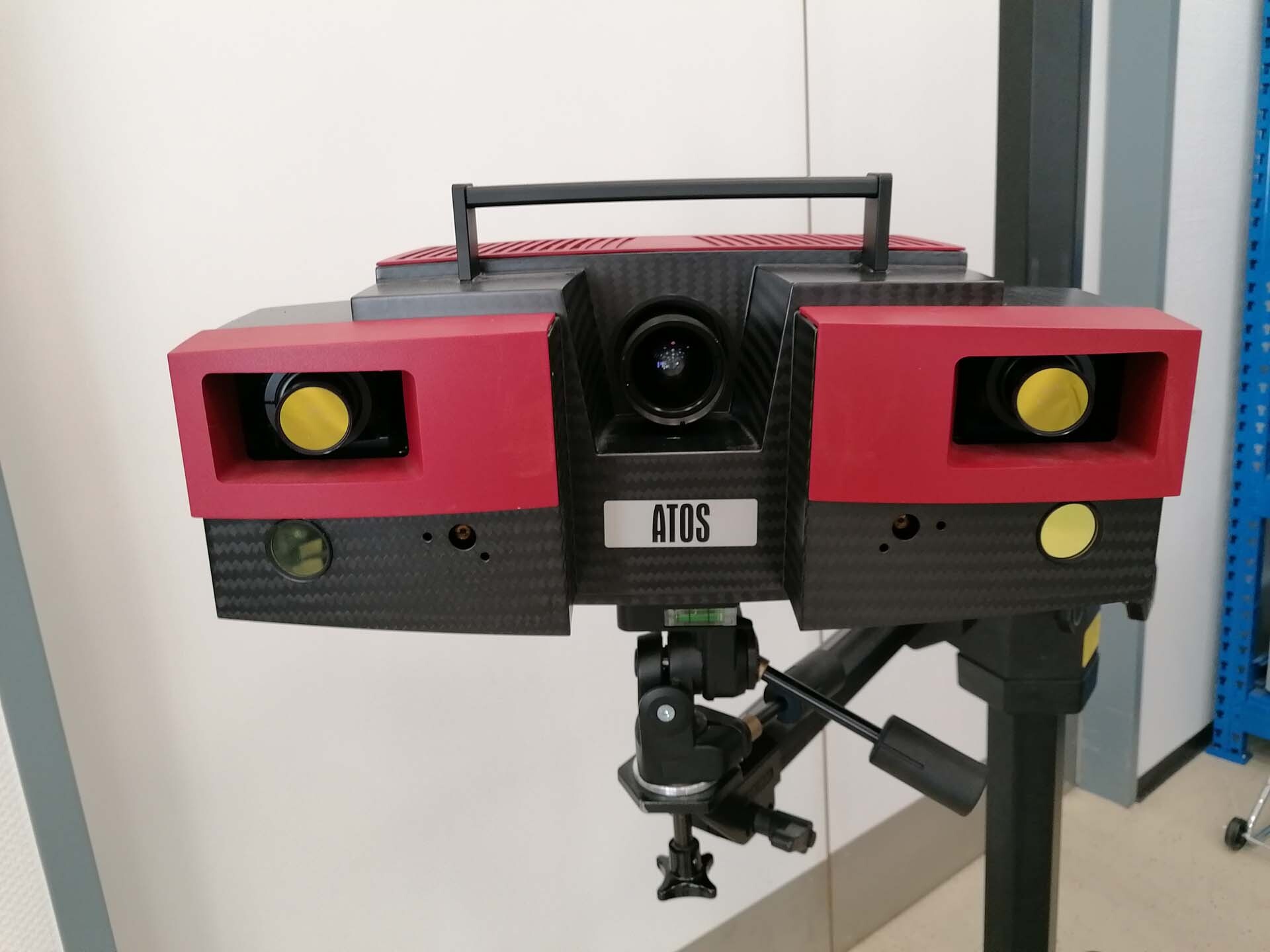

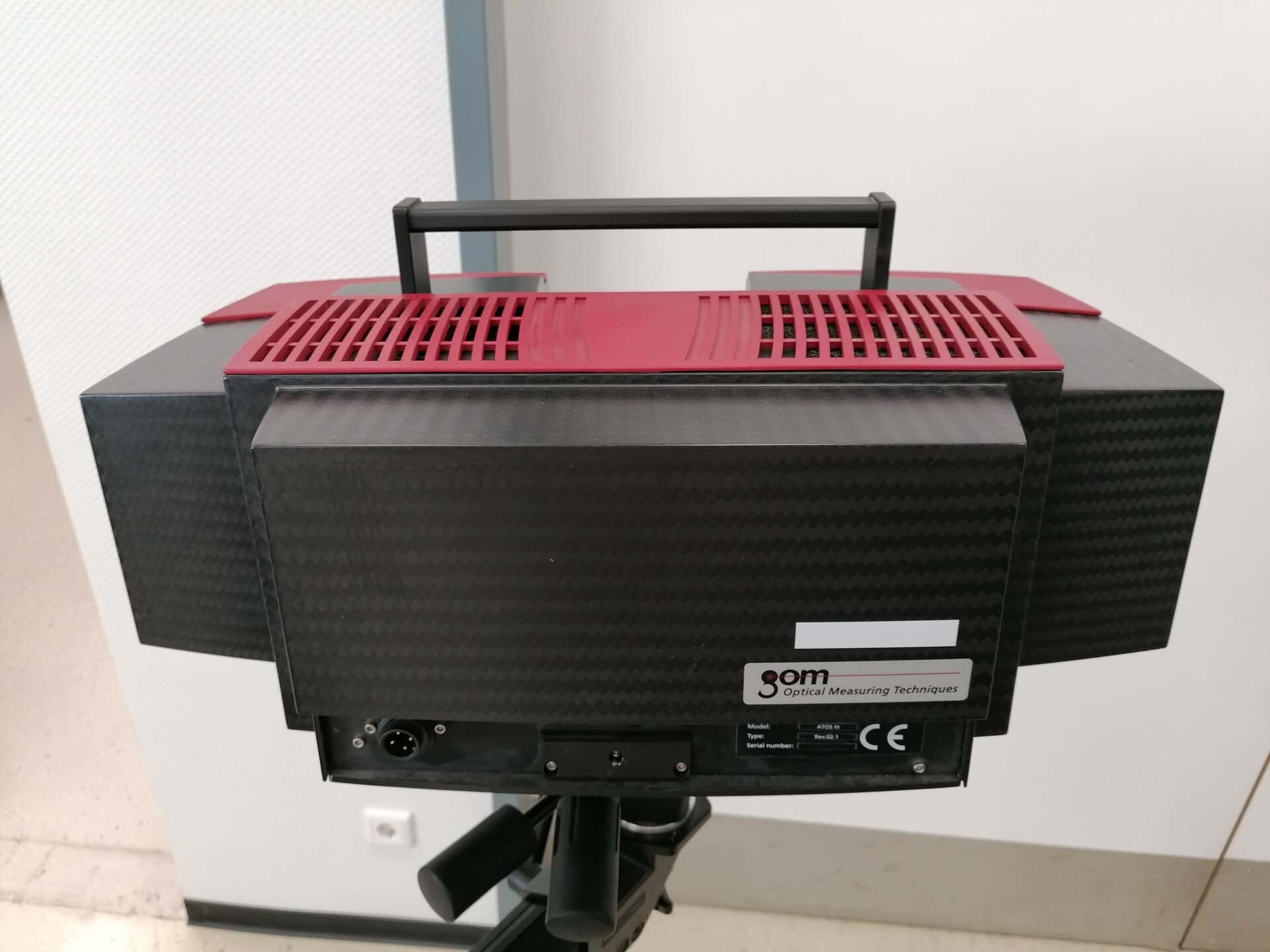

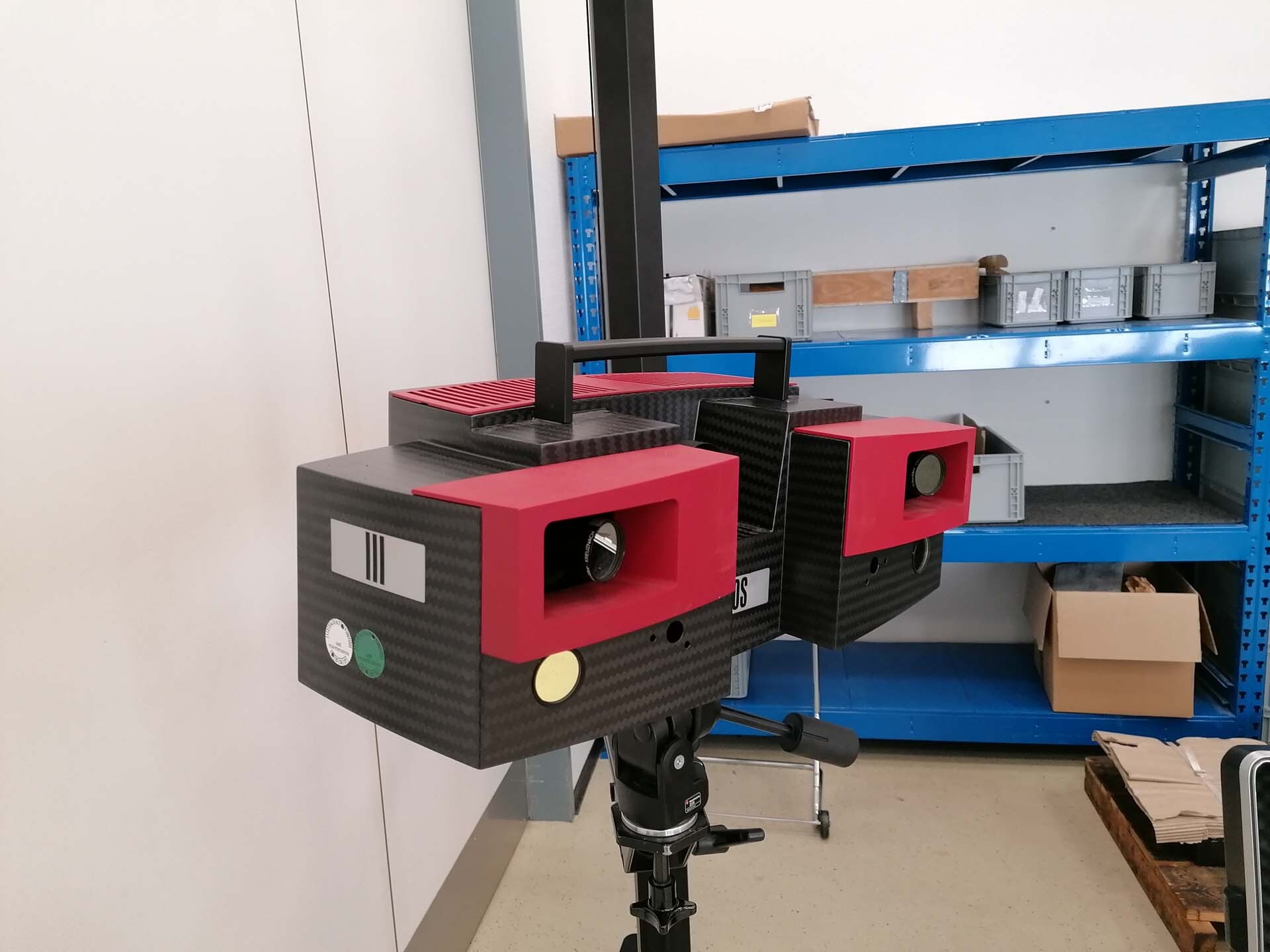

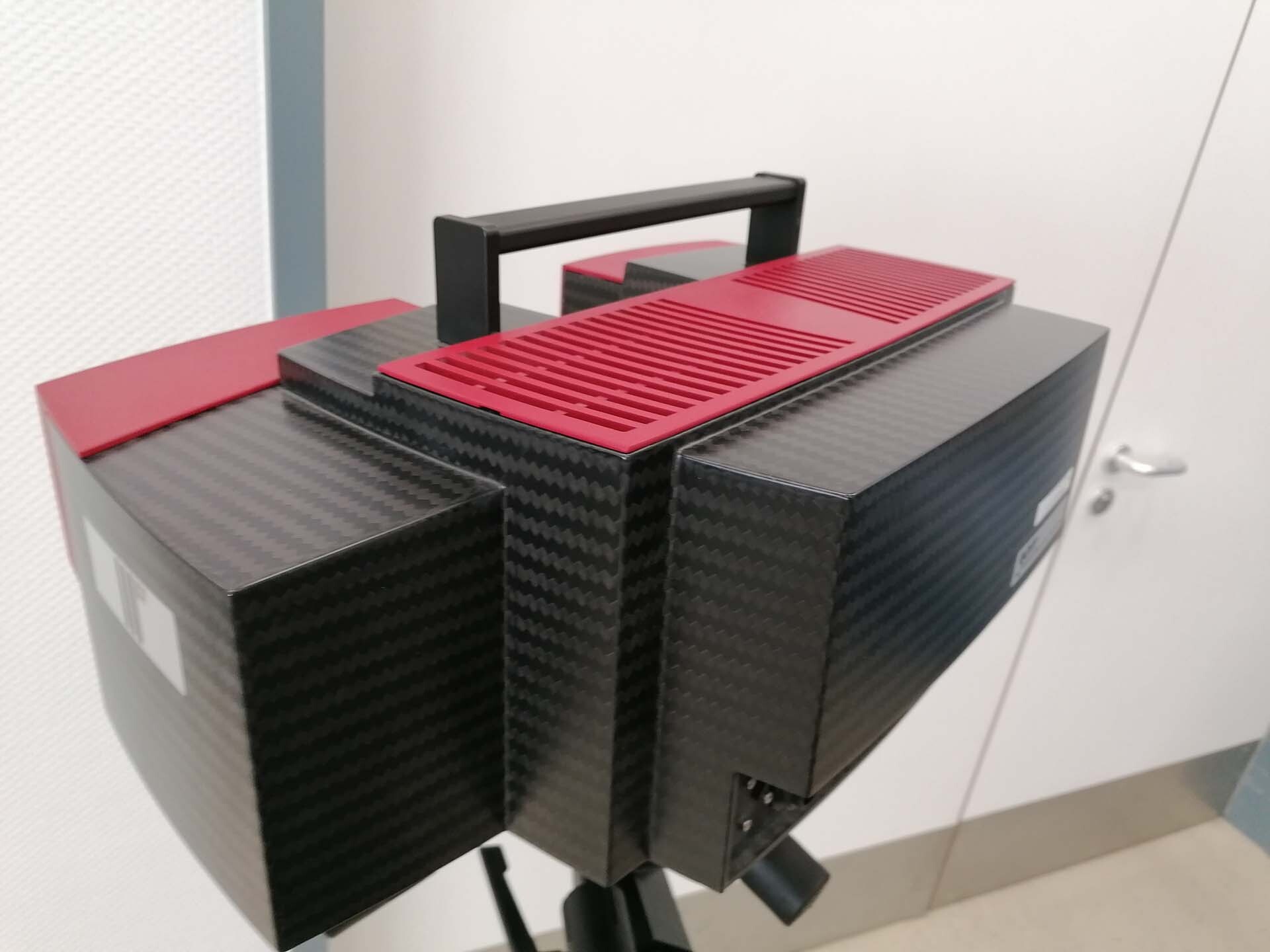

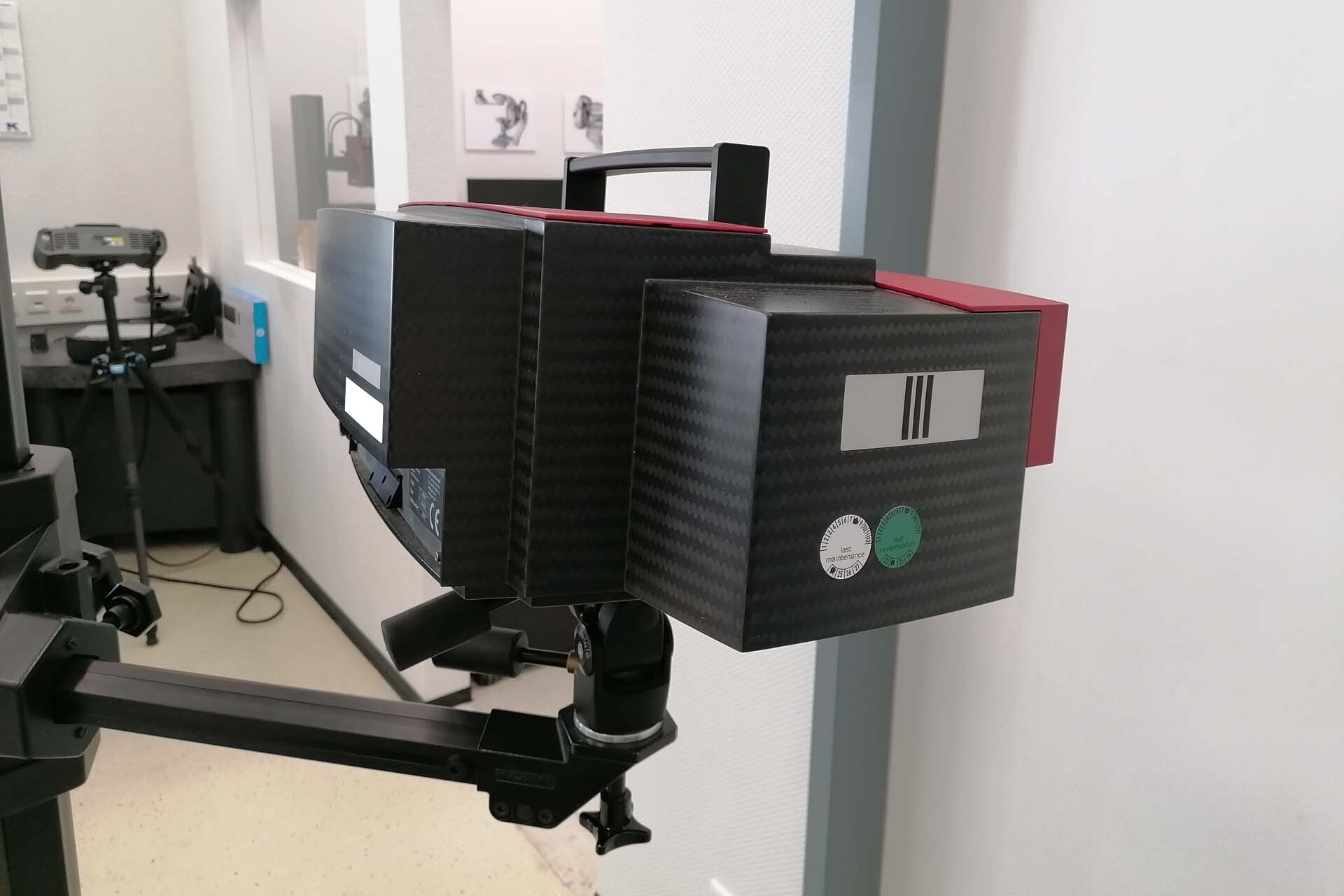

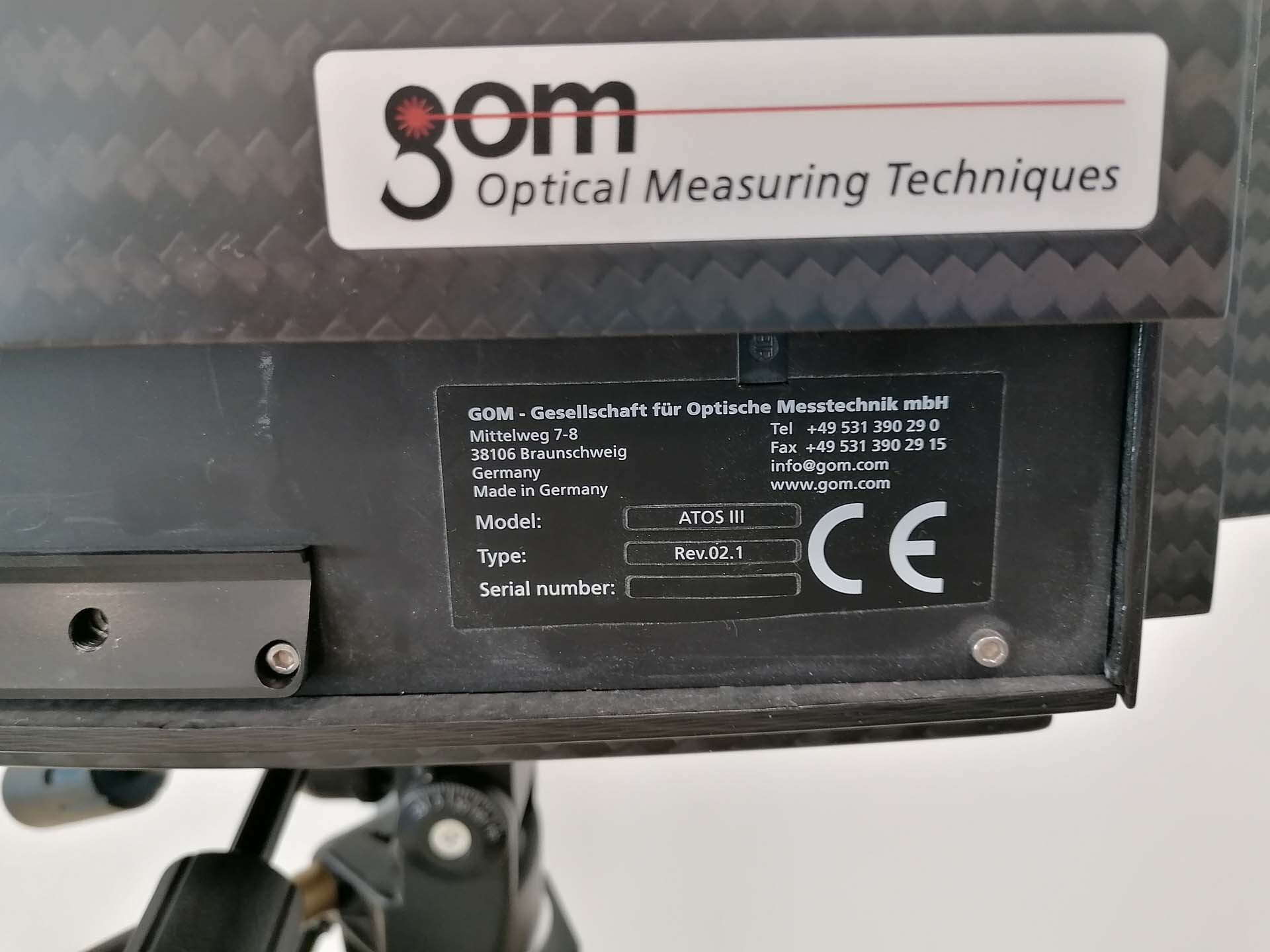

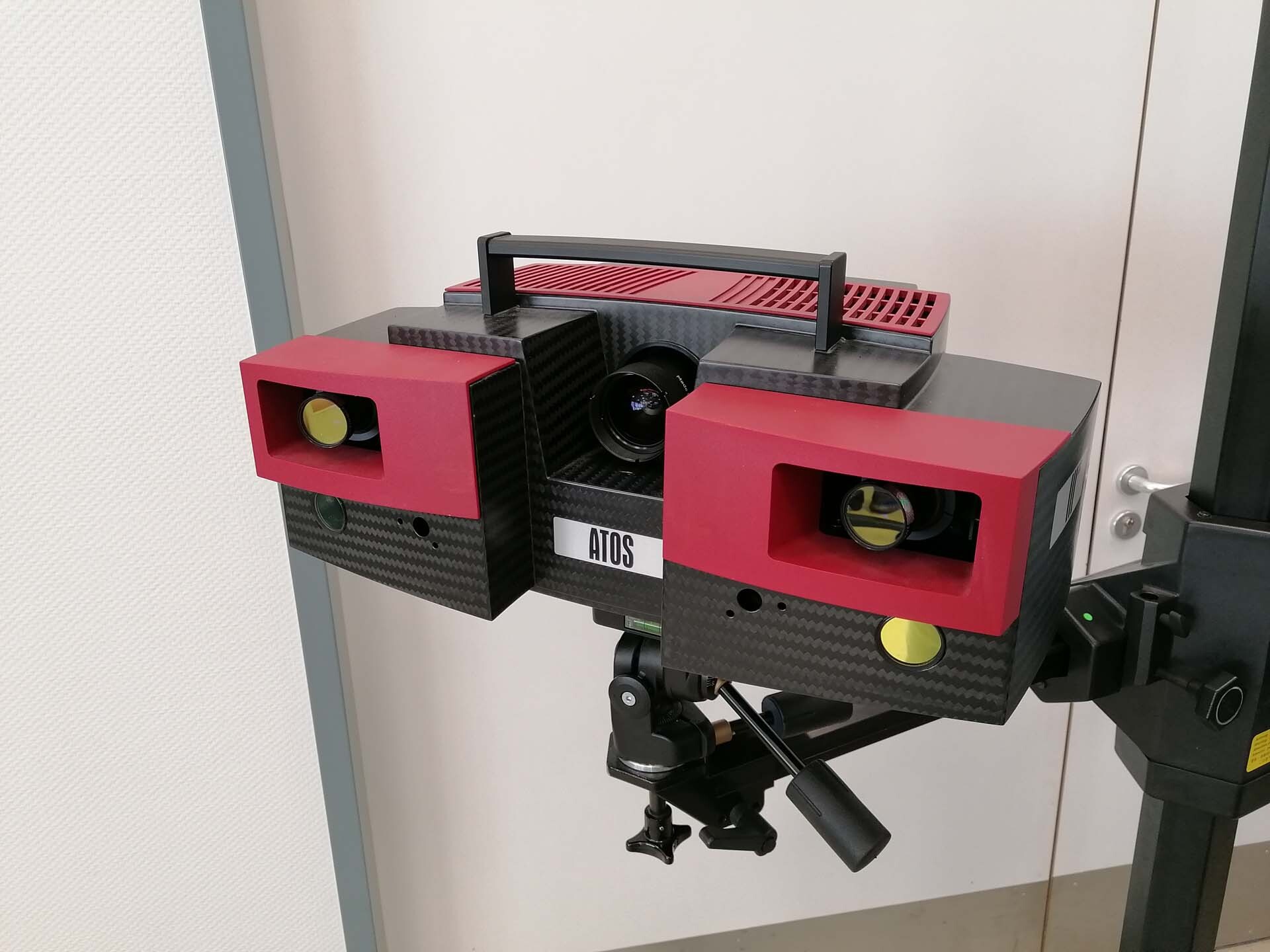

판매용 중고 GOM ATOS III #293824565
URL이 복사되었습니다!
확대하려면 누르십시오
ID: 293824565

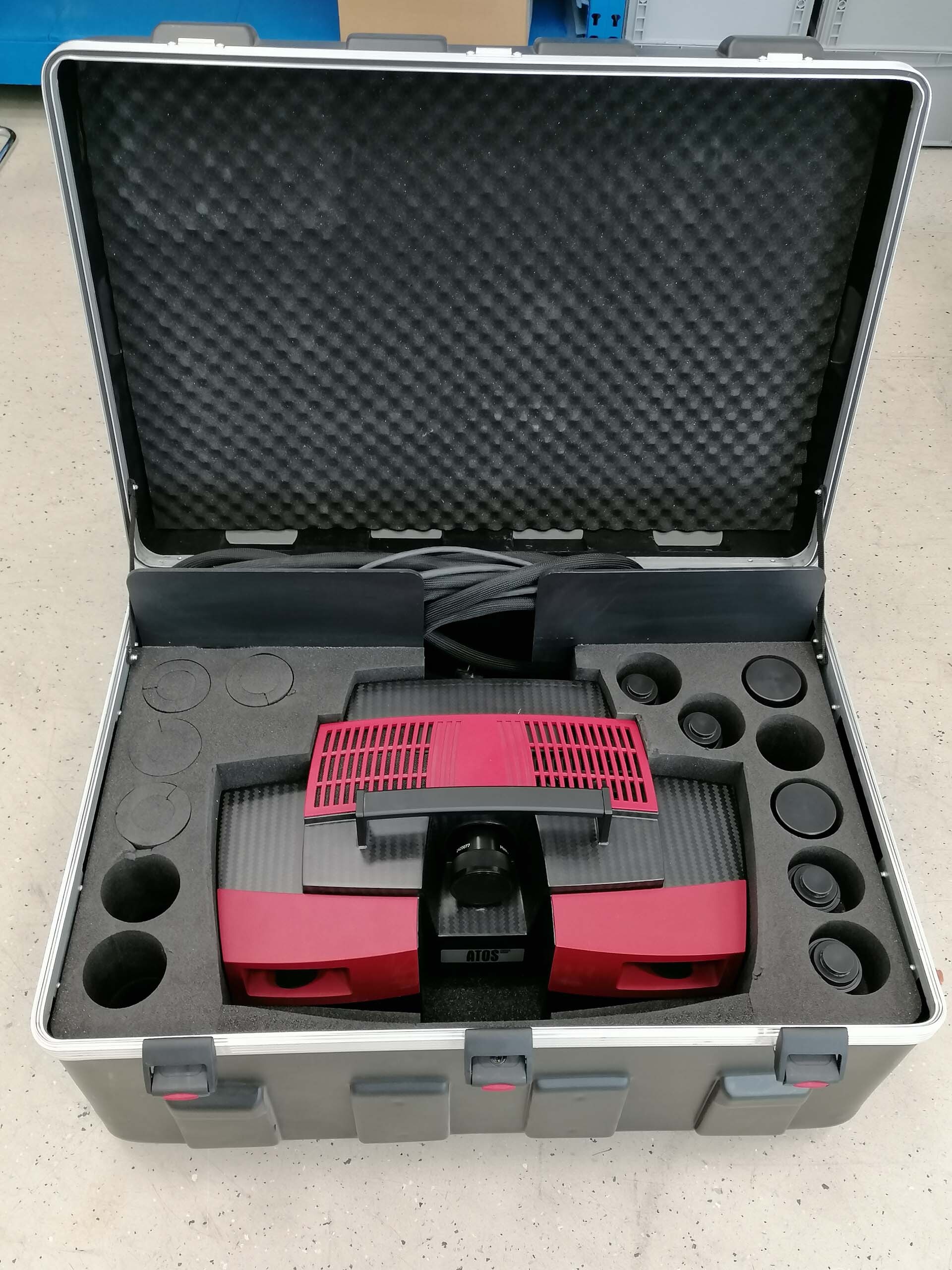

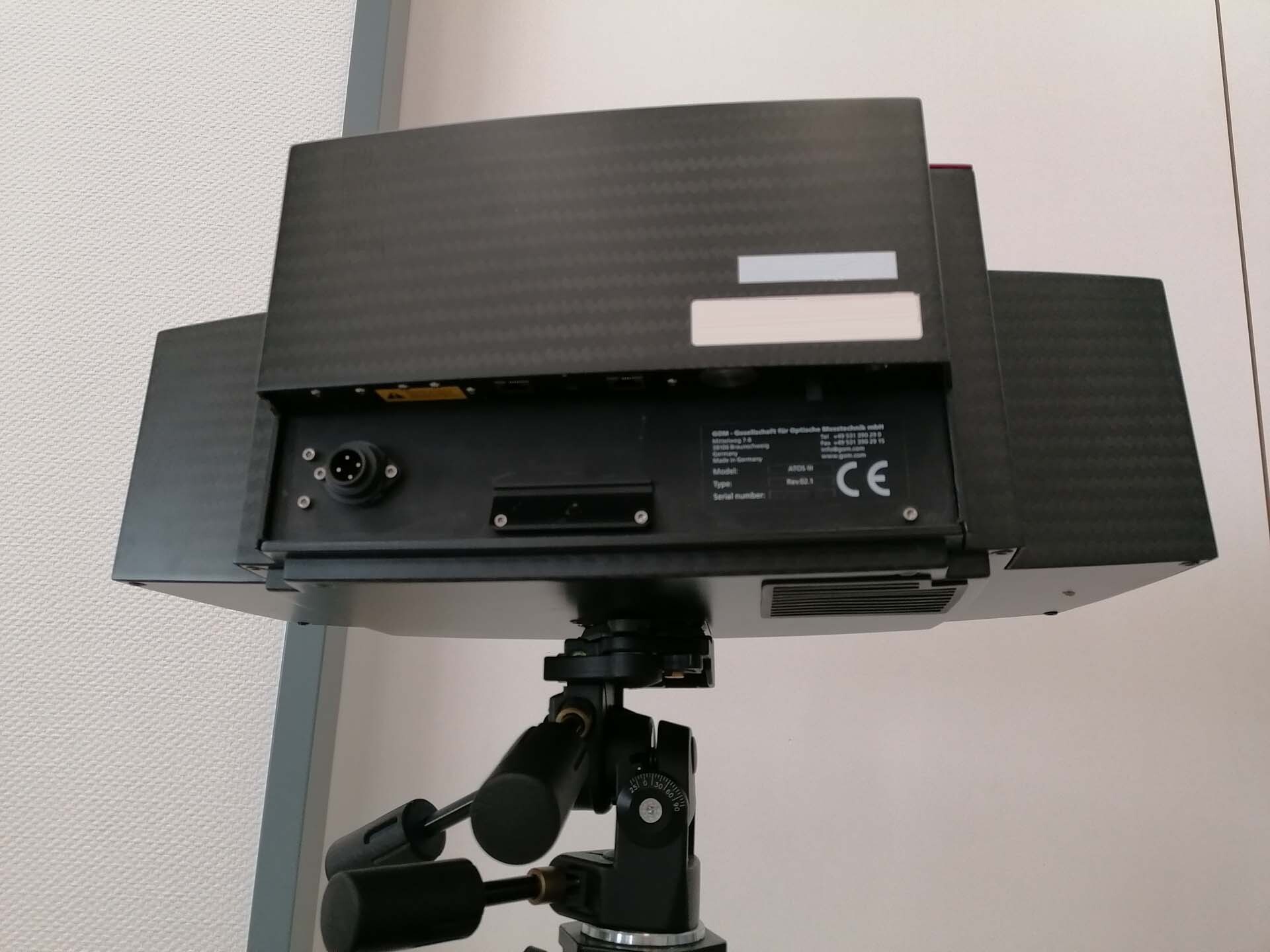

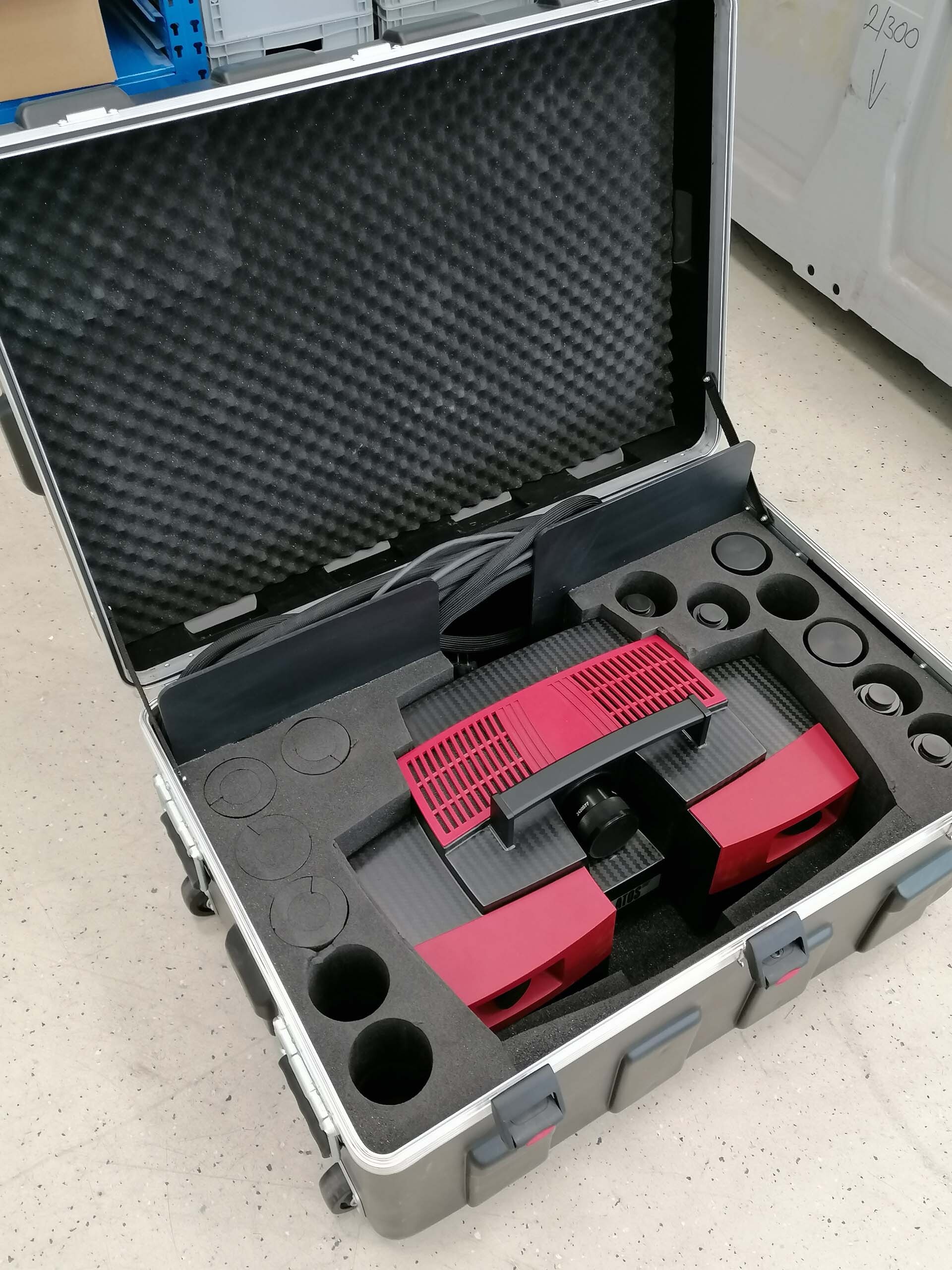

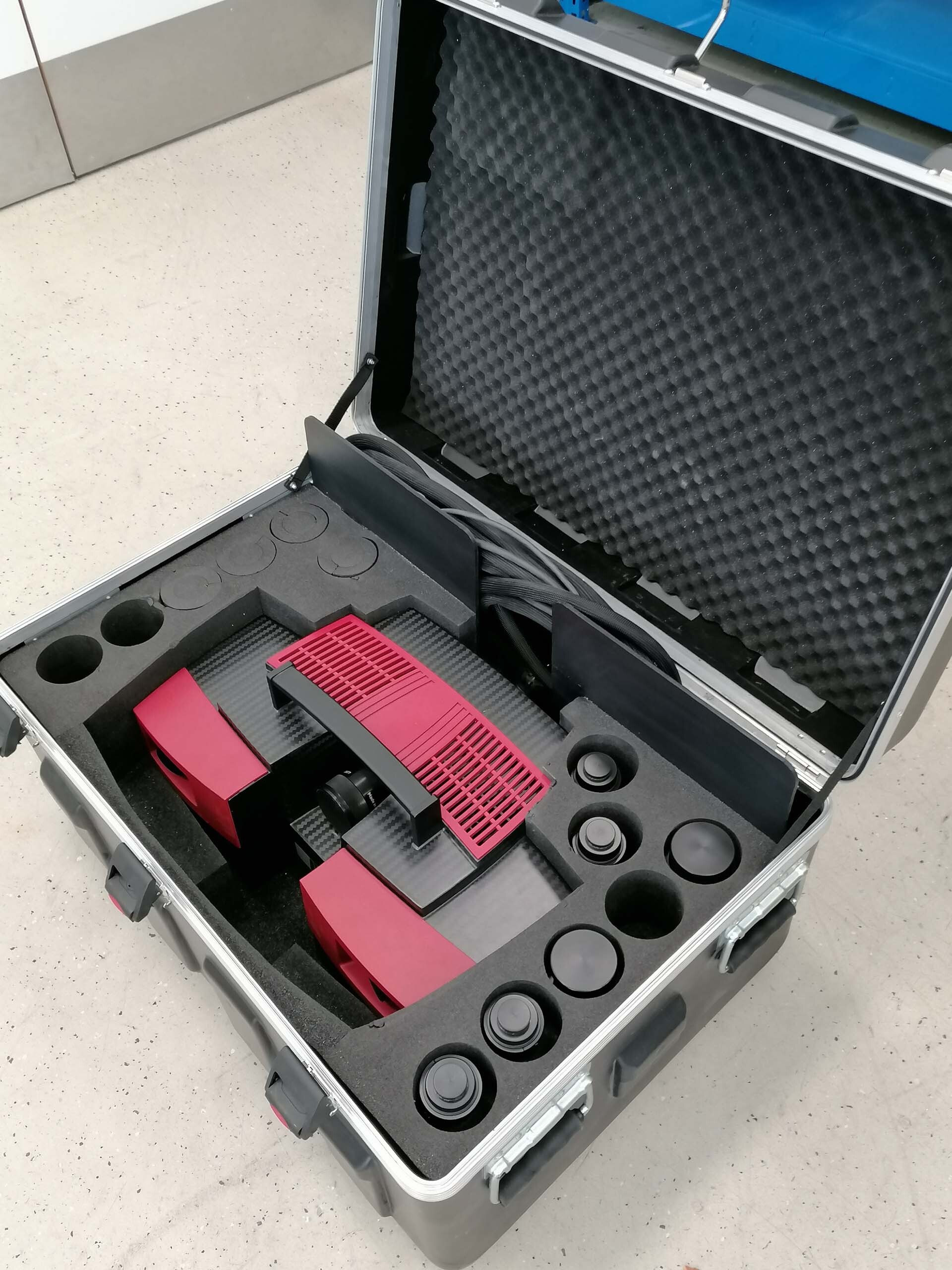

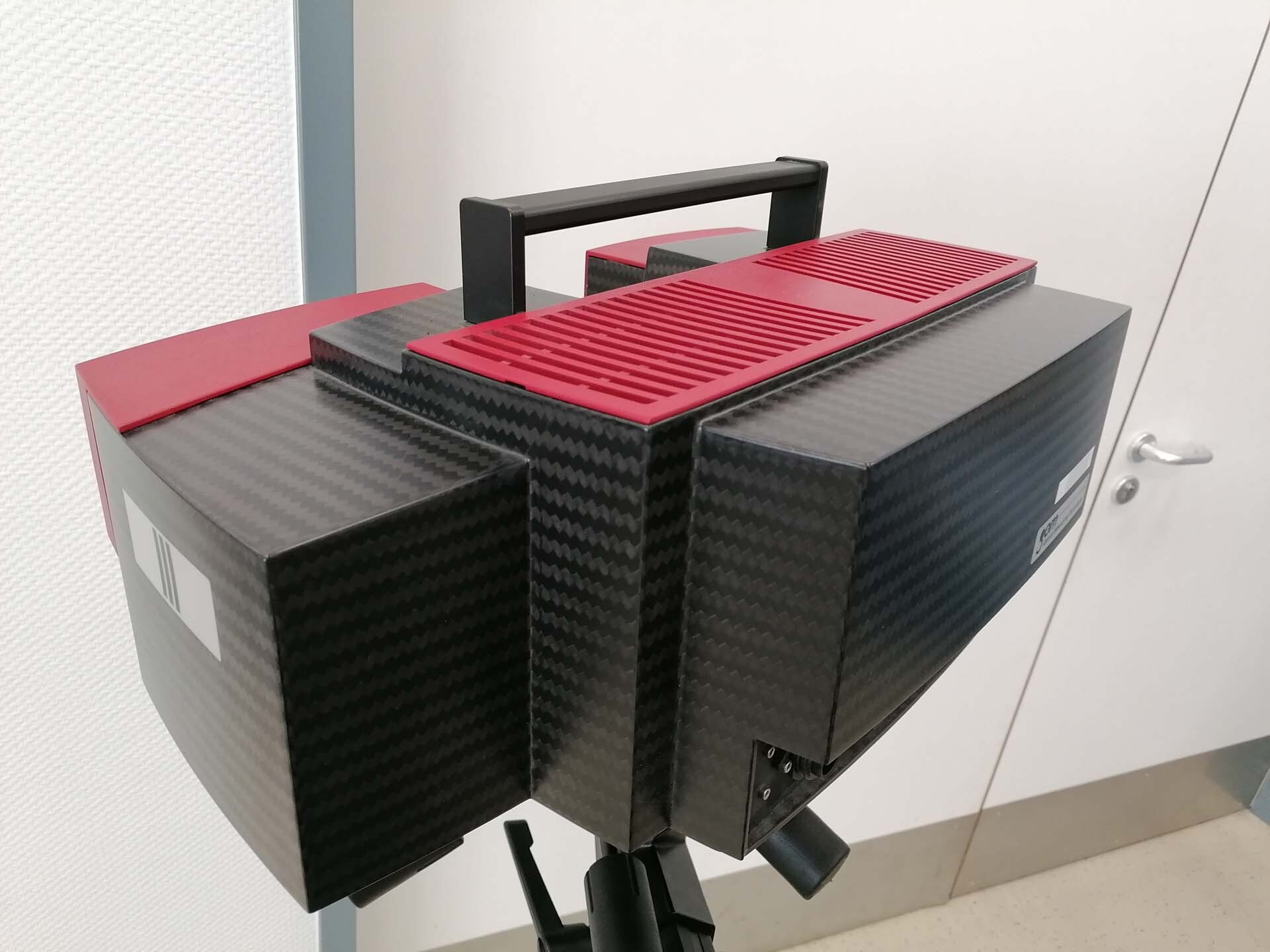

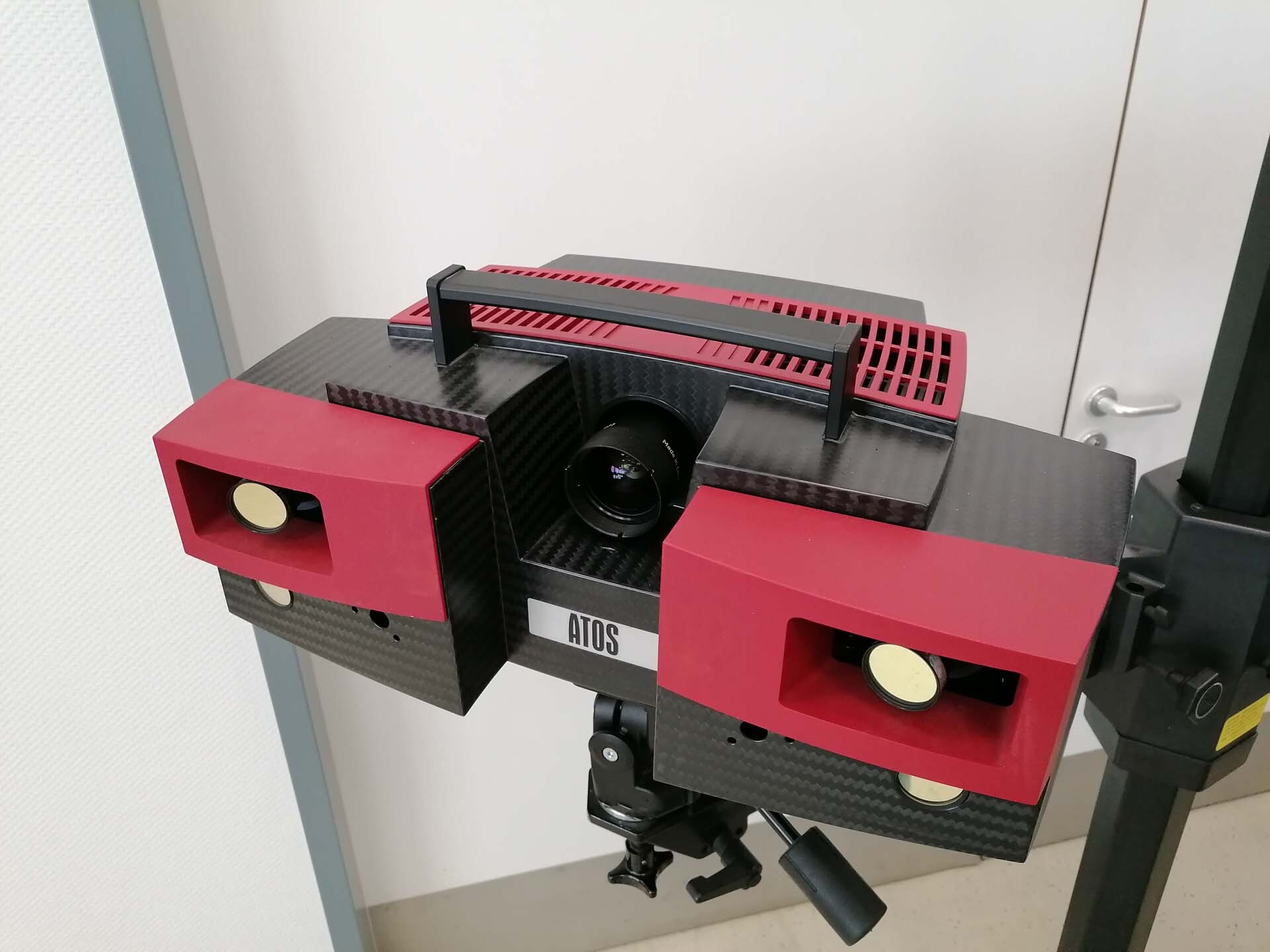

Scanner
8M Pixel camera
(3) Measuring fields
PC
Rotary system

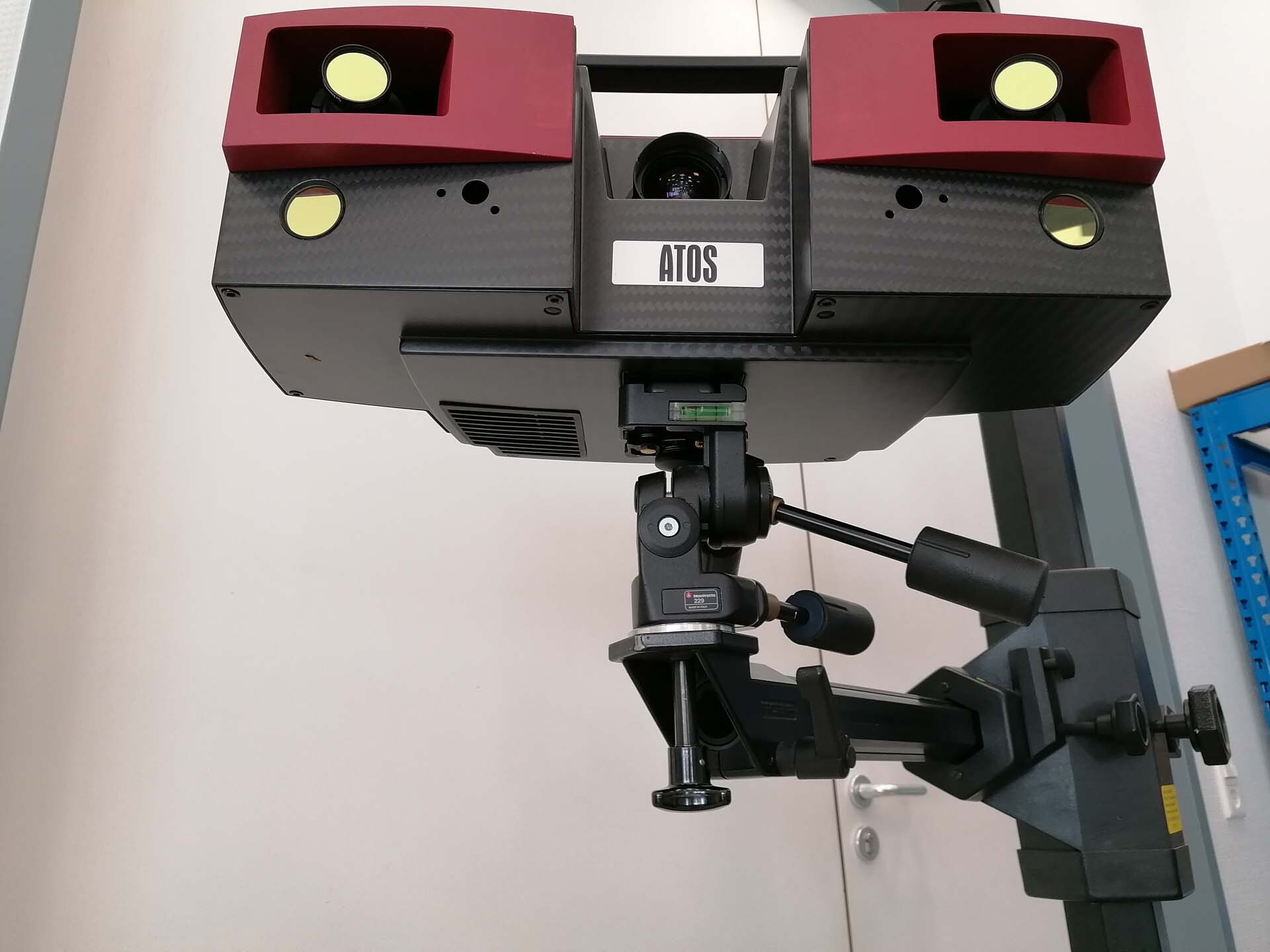

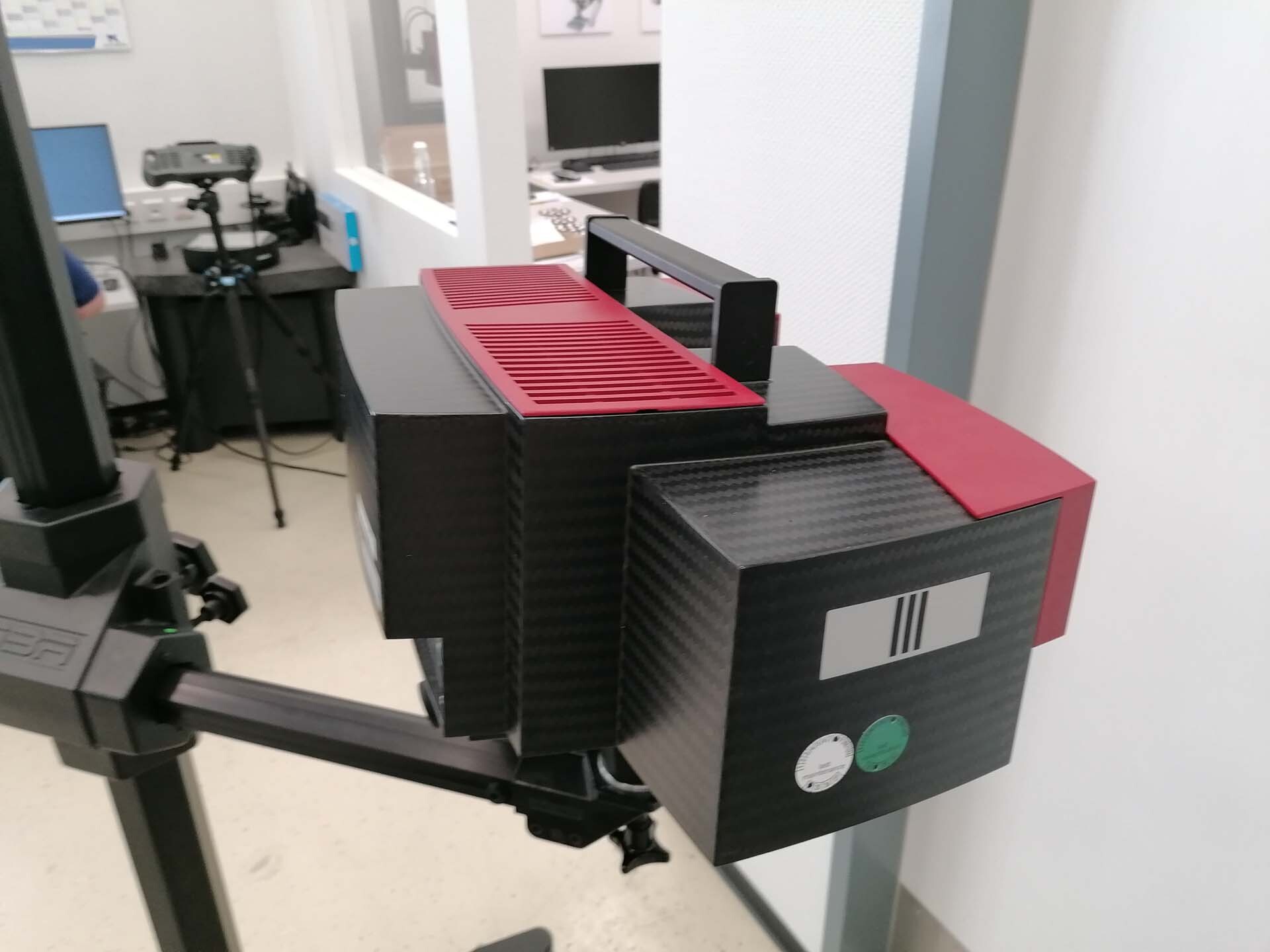

FOBA AROBE Stand
Mess volume: MV700 (700 mm x 530 mm x 520 mm)
20.00 mm Camera lens
Focal length: 24.00 mm

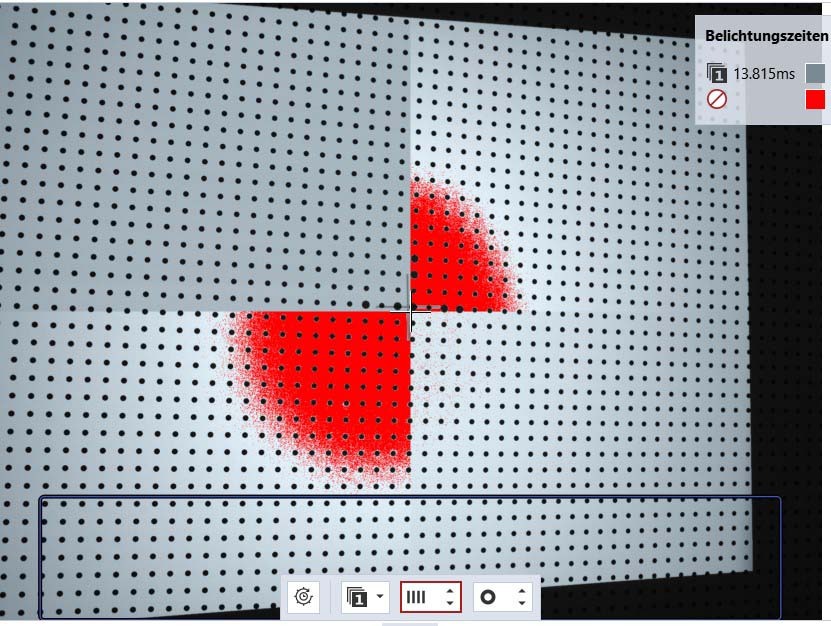

Calibration object:
P/N: CP40-700-72573
Platte calibration object (Triple scan)
Calibration 2961 Points
Certified test lengths: 1016.708 mm / 1016.548 mm
20.0°C Temperature
20.4°C Calibration temperature
Calibration result:
Calibration deviation: 0.037 mm Pixel
Calibration deviation (Optimized): 0.010 Pixel
Calibration deviation (Control): 0.055 Pixel
Projector calibration: 0.077 Pixel
Projector calibration (Optimized): 0.013 Pixel
Projector calibration (Check): 0.300 Pixel
27.5°Camera angle
Altitude: 508 mm.
