판매용 중고 SEMITOOL Raider #293635960

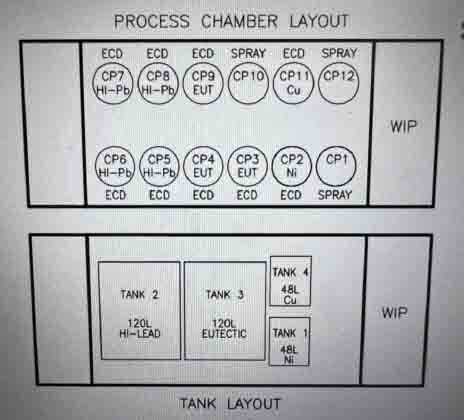

Single wafer processing system, 12" Model No: RE12F2ECD1204 Substrate: Si, 12" S2 Computer 502SE Controller Remote PPS MARATHON Standard Interface: CDRU, AARU (6) CCD Cameras Process: Cu, Ni, Eutectic, High lead plating Automation: Type: (2) FOUP WIP (PGV Compatible) COAXIAL HT Robot STI Robot controller End effect controller: Edge grip Wet transfer edge grip FOUP ID: ASYST, P/N: 9750-2000-000 HERMOS RF Tag reader Vacuum source Wafer protrusion sensor Process module: CPC 1, 10, 12: Process: SRD / Prewet PTFE Spray chamber P/N: 271T0020-03 Rotor: Cantilever, N2 Wafer purge Bulk fill supply with filter, 5" IW Drain Spray bar nozzel, P/N: 341 T0011-05 CPC 2: Process: Ni Plating Chamber, P/N: 271T0130-01 CFD III Ring, P/N: 213T1055-501 Anode, P/N: 110T0198-01, 111T0000-10 Plating PS, P/N: T16852-118 Wafer present sensor Mercury contact Wafer extraction (Mechanical) Flow meter on chemical line Shield / Weir, P/N: 111T1204-511 CPC 3, 4, 9: Process: Solder plating (Eutectic) Chamber, P/N: 271T0130-01 CFD III Ring, P/N: 213T1055-501 Plating PS, P/N: T16852-118 Wafer present sensor Mercury contact CPC 5, 6, 7, 8: Process: Solder plating (High lead) Chamber, P/N: 271T0130-01 CFD III Ring, P/N: 213T1055-501 Plating PS, P/N: T16852-118 Wafer present sensor Mercury contact Wafer extraction Flow meter on chemical line Shield / Weir, P/N: 111T1204-511 CPC 11: Process: Cu Plating Chamber, P/N: 271T0130-01 CFD III Ring, P/N: 213T1055-501 Anode, P/N: 111T1197-01 Plating PS, P/N: T16852-118 Wafer present sensor Mercury contact Wafer extraction Flow meter on chemical line Shield / Weir, P/N: 111T1204-511 Capacity: 48 L Style: Unsealed NPP Heat exchange coils Temperature: 50-55°C Filter, 10" Sensor: (5) Floats LEVITRONIX BPS 3 Pump WK AP50 Pump Supply: ARU / CDU / Bulk fill / Manual fill tube Sample port CPC 2 Ni Plating solution Carbon polishing filter Conditioning electrodes pH Monitor Sight tube Power supply Tank 2: High lead solder Capacity: 120 L Style: Unsealed NPP Heat exchange coils Temperature: 25-35°C Filter, 10" Sensor: (5) Floats LEVITRONIX BPS 3 Pump WK AP50 Pump Supply: Bulk fill / CDU / Manual fill tube Sample port CPC 5, 6, 7, 8 Chemical: High lead plating solution Sight tube Tank 3: Eutectic solder Capacity: 120 L Style: Unsealed NPP Heat exchange coils Temperature: 25-35°C Filter, 10" Sensor: (5) Floats LEVITRONIX BPS 3 Pump WK AP50 Pump Supply: Bulk fill / CDU / Manual fill tube Sample port CPC 3, 4, 9 Chemical: Eutectic plating solution Sight tube Tank 4: Cu Capacity: 48 L Style: Unsealed NPP Heat exchange coils Temperature: 25°C Filter, 10" Sensor: (5) Floats LEVITRONIX BPS 3 Pump WK AP50 Pump Supply: ARU / CDU / Bulk fill / Manual fill tube Sample port CPC 11 Cu Plating solution Sight tube Drains: IW, Eutectic, Hi lead, Ni, Cu Options: (3) Heater chillers Dl Booster pump cabinet and Interface Power supply: 480 V, 4 Wire, 3-Phase.
