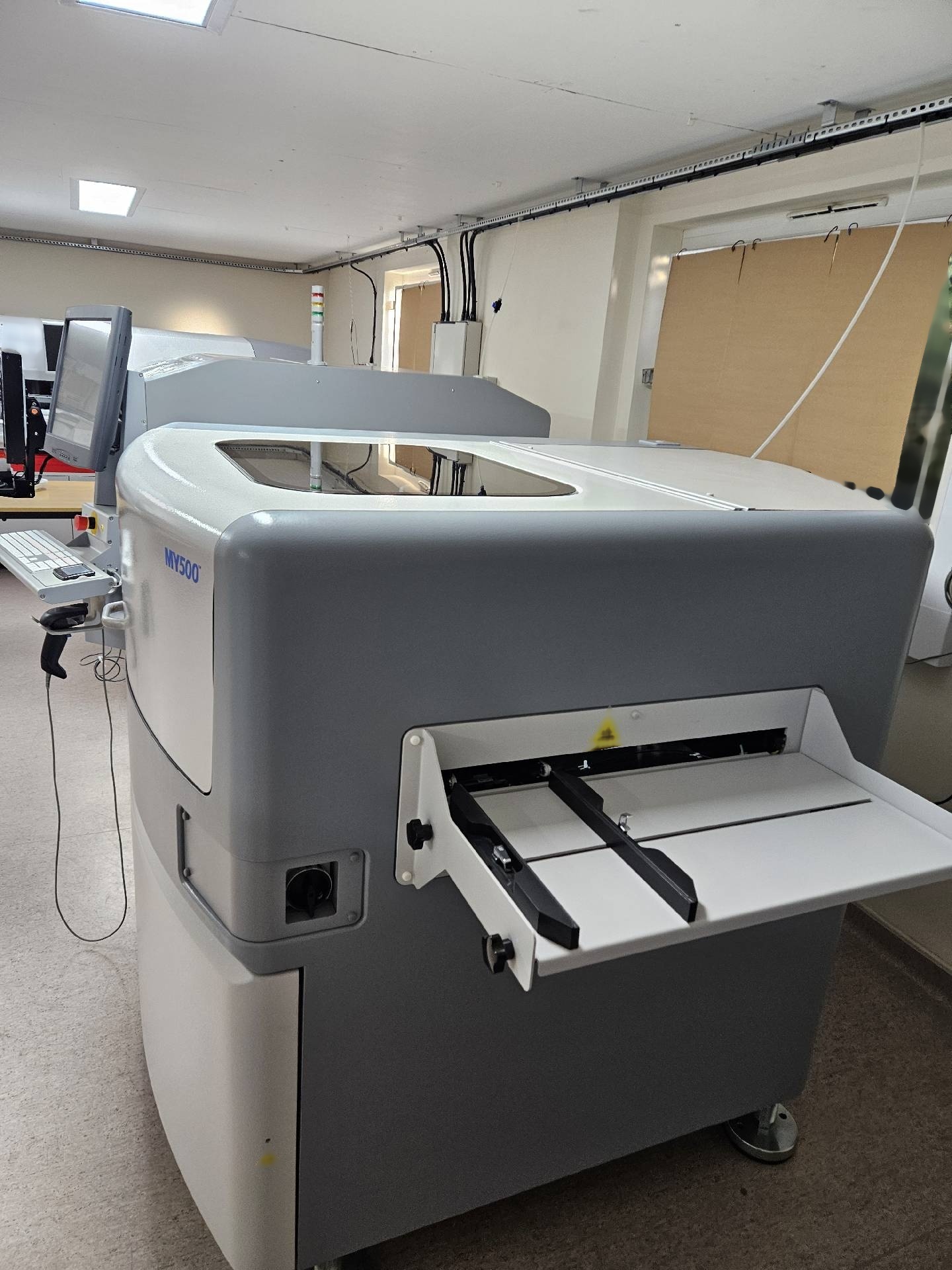

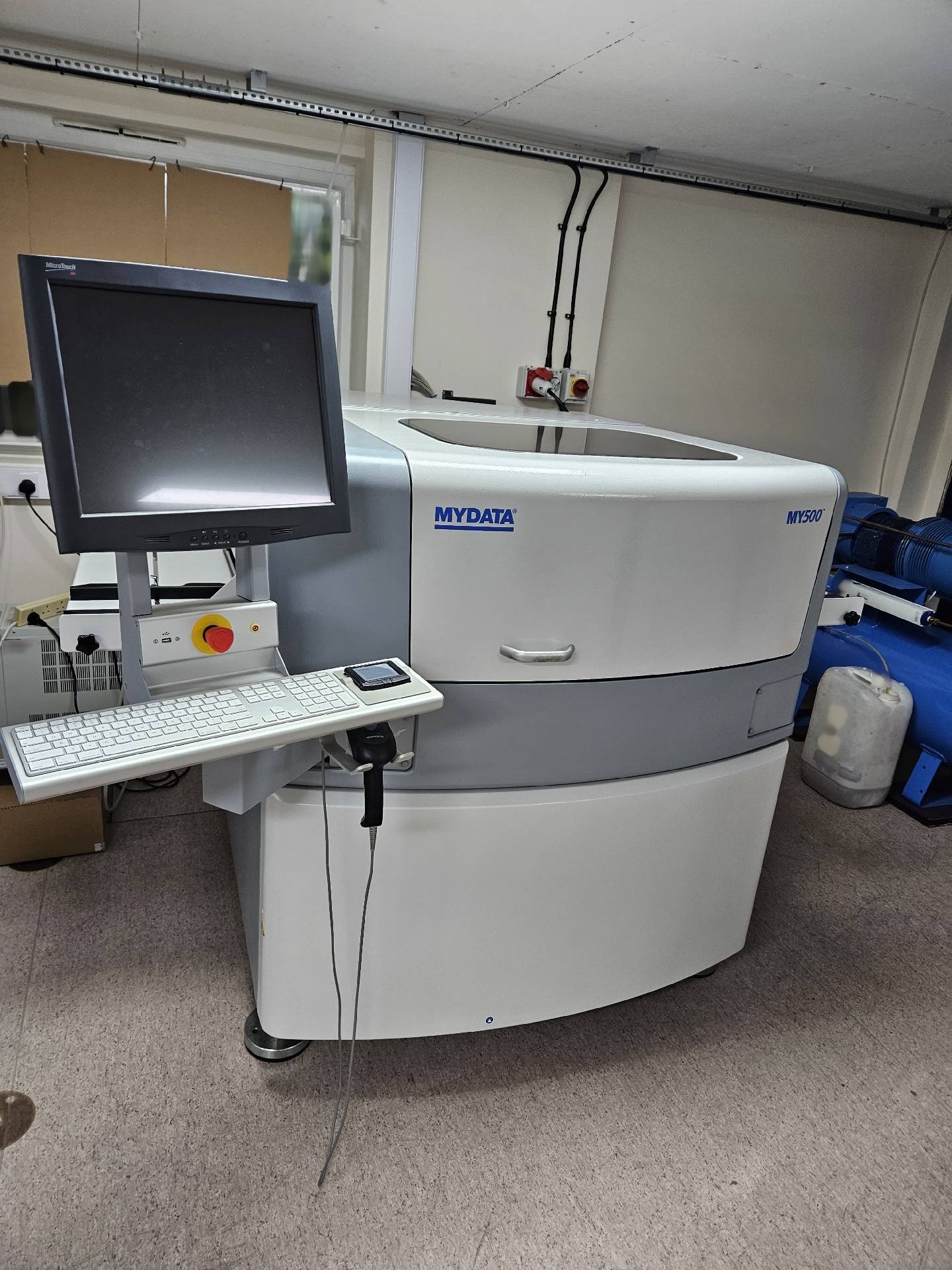

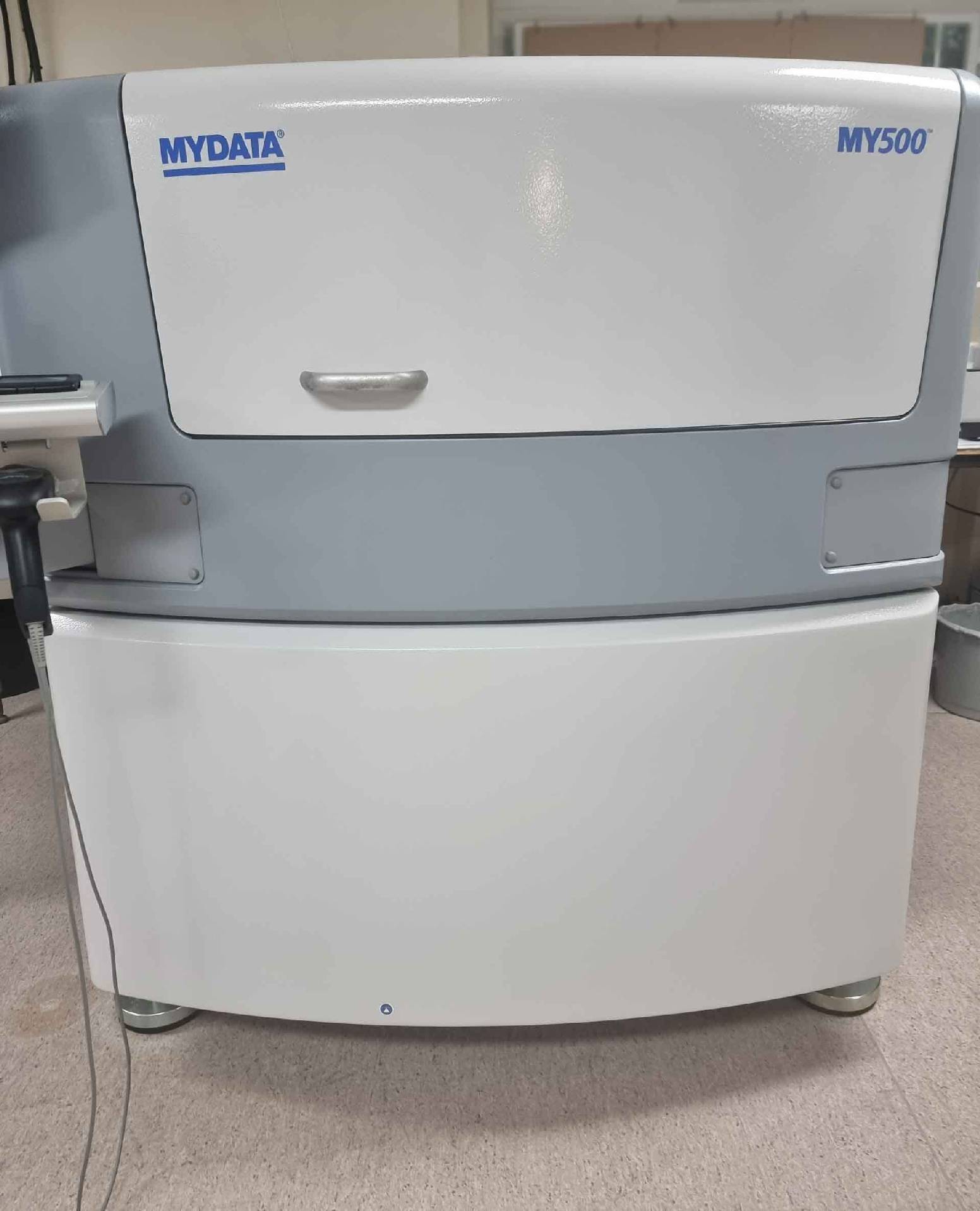

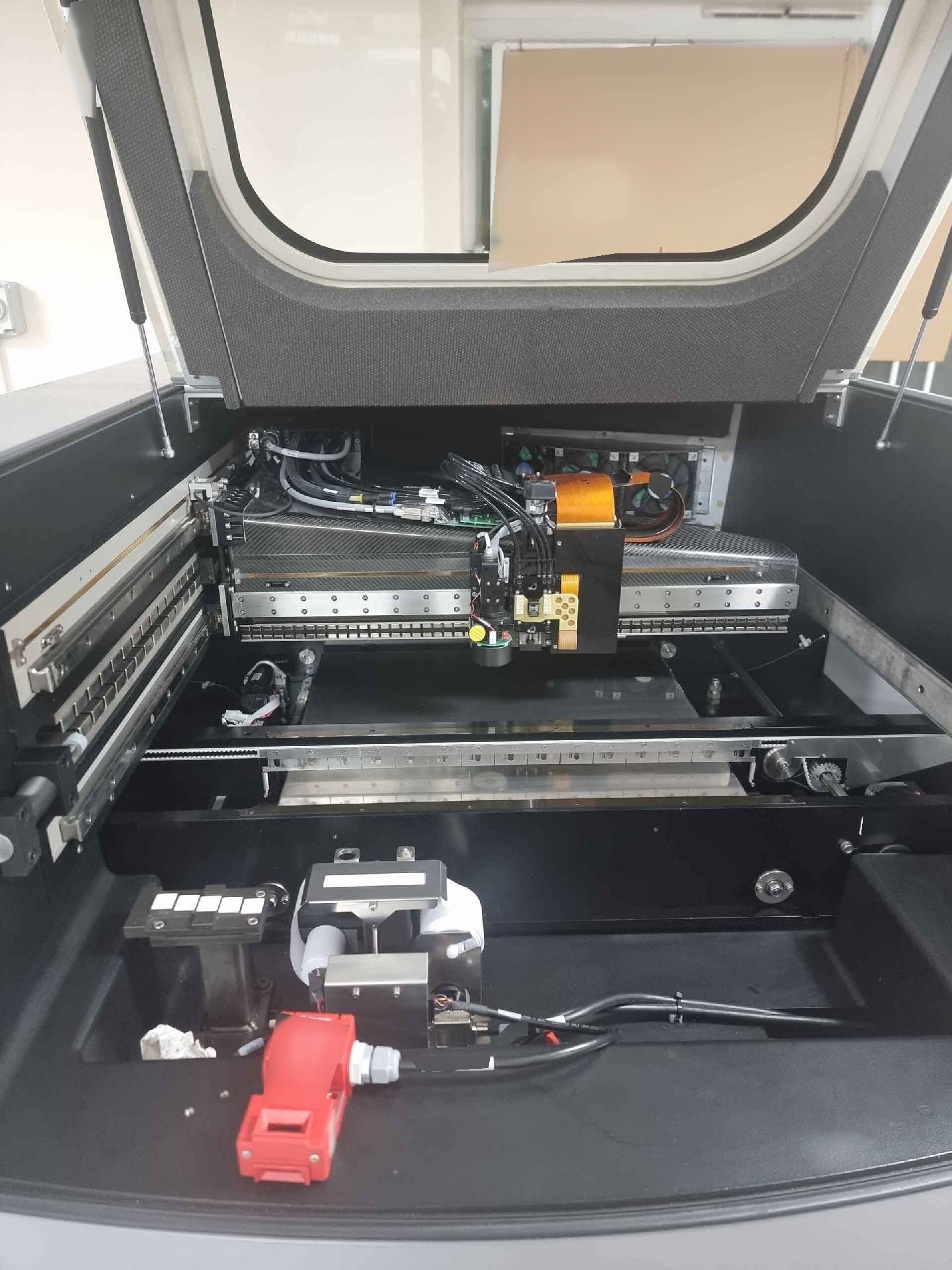

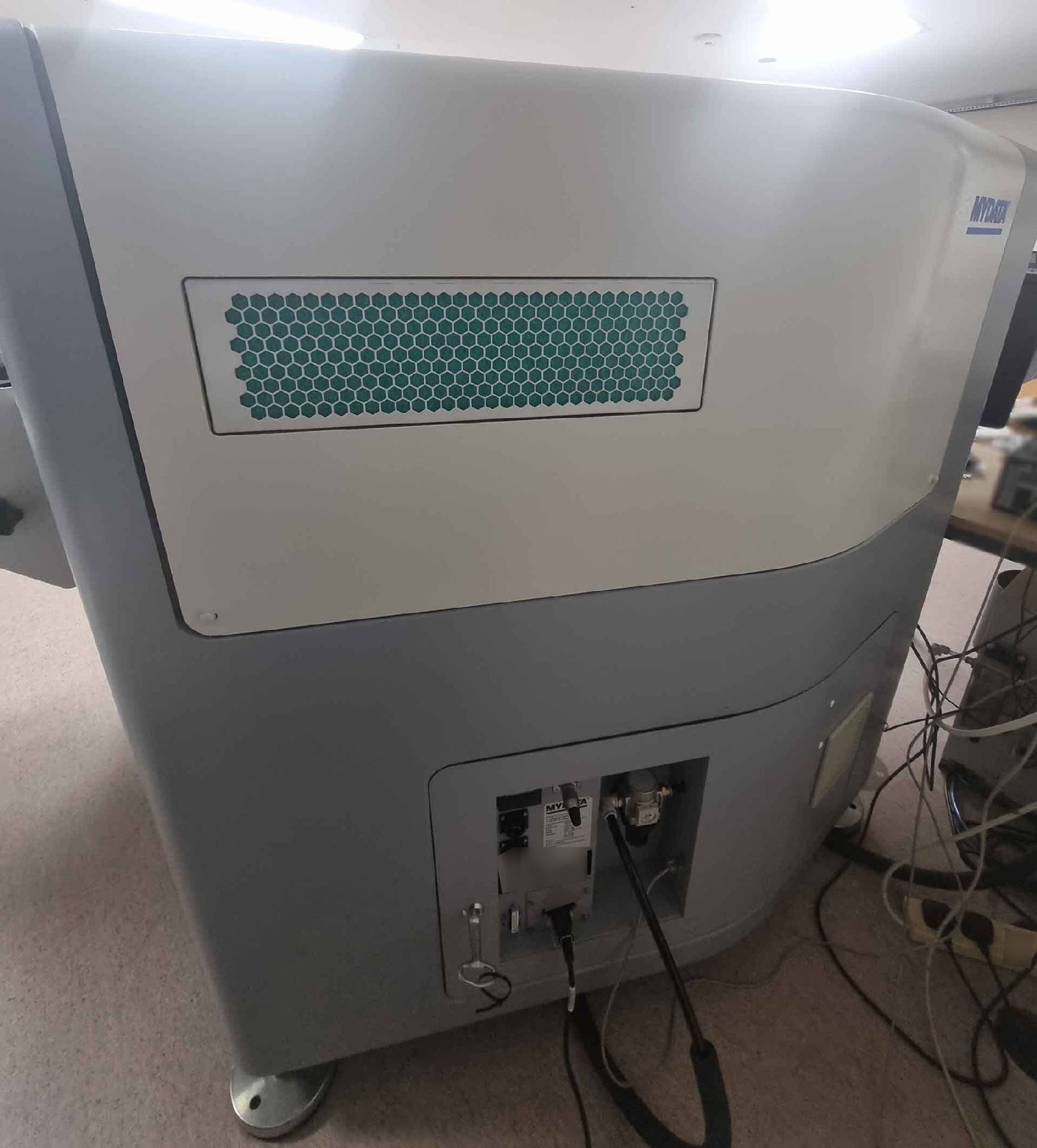

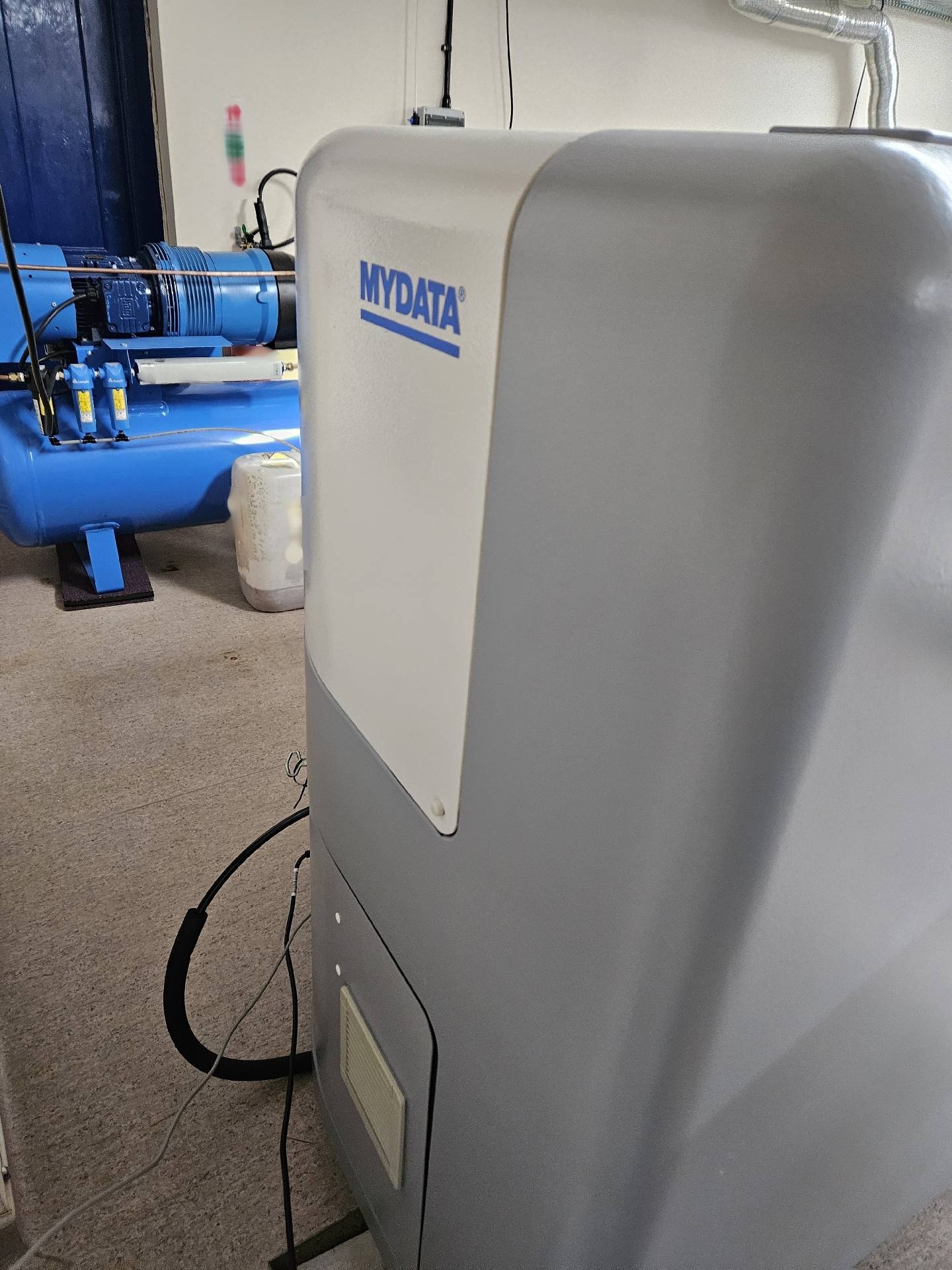

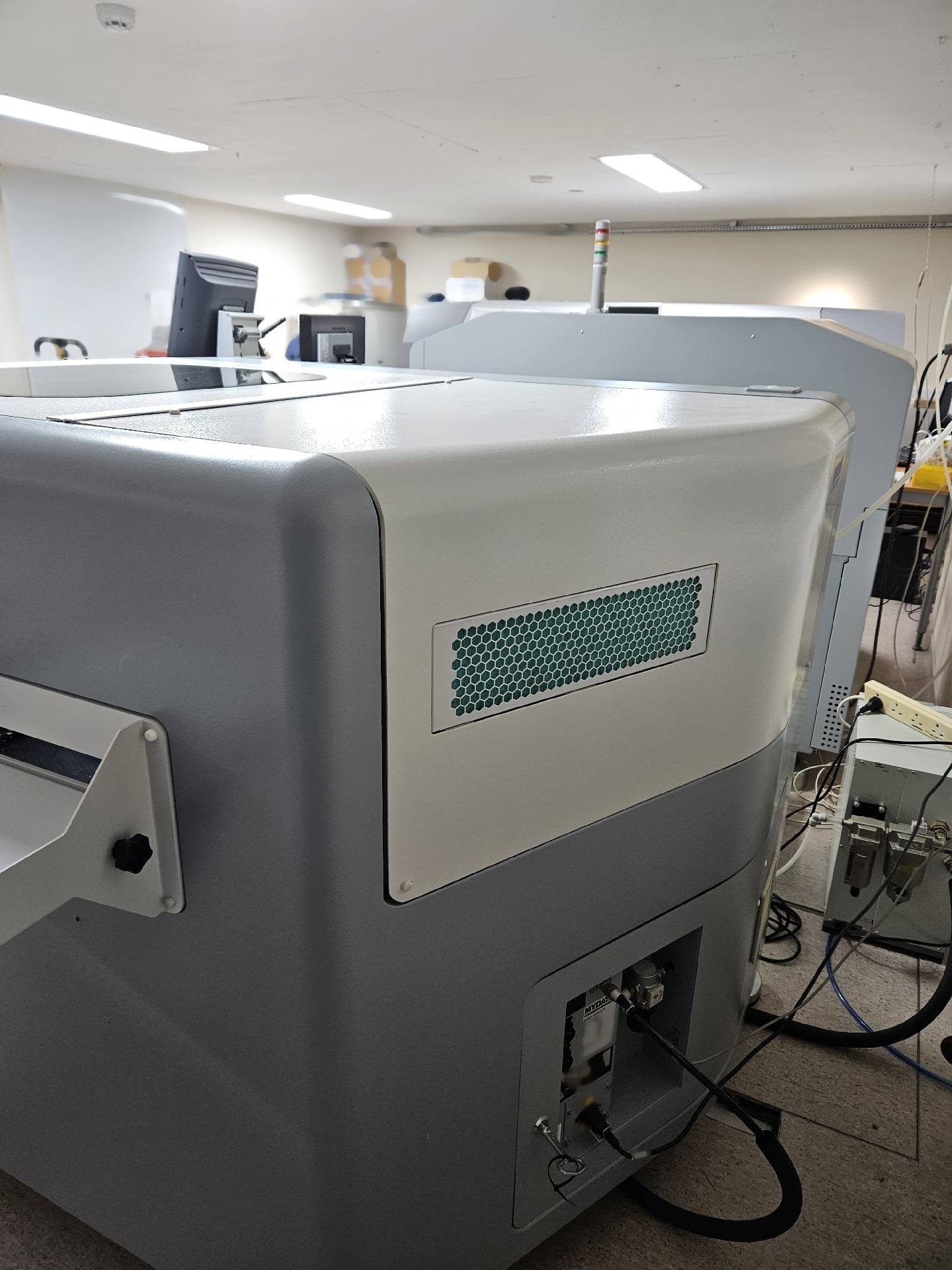

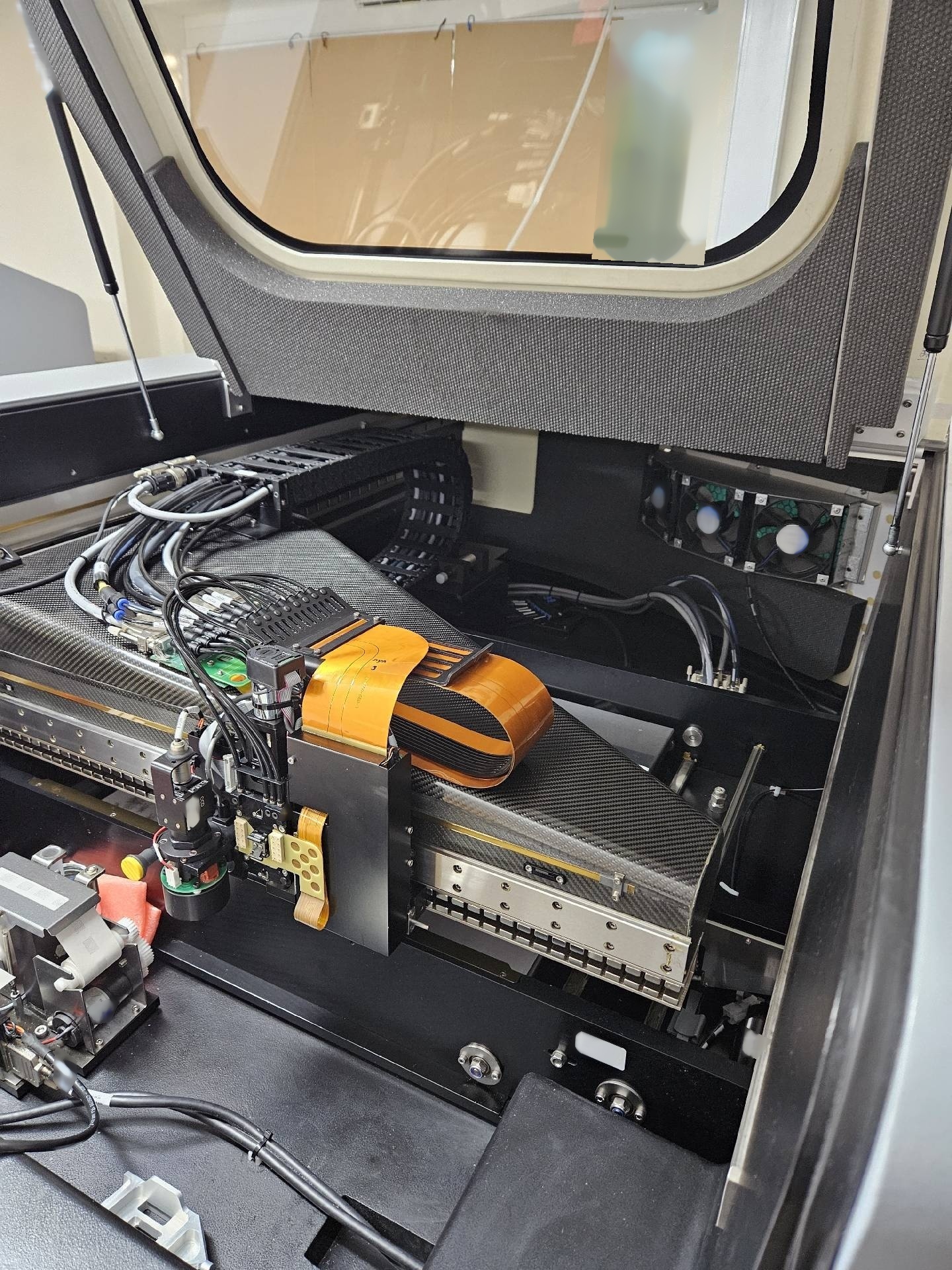

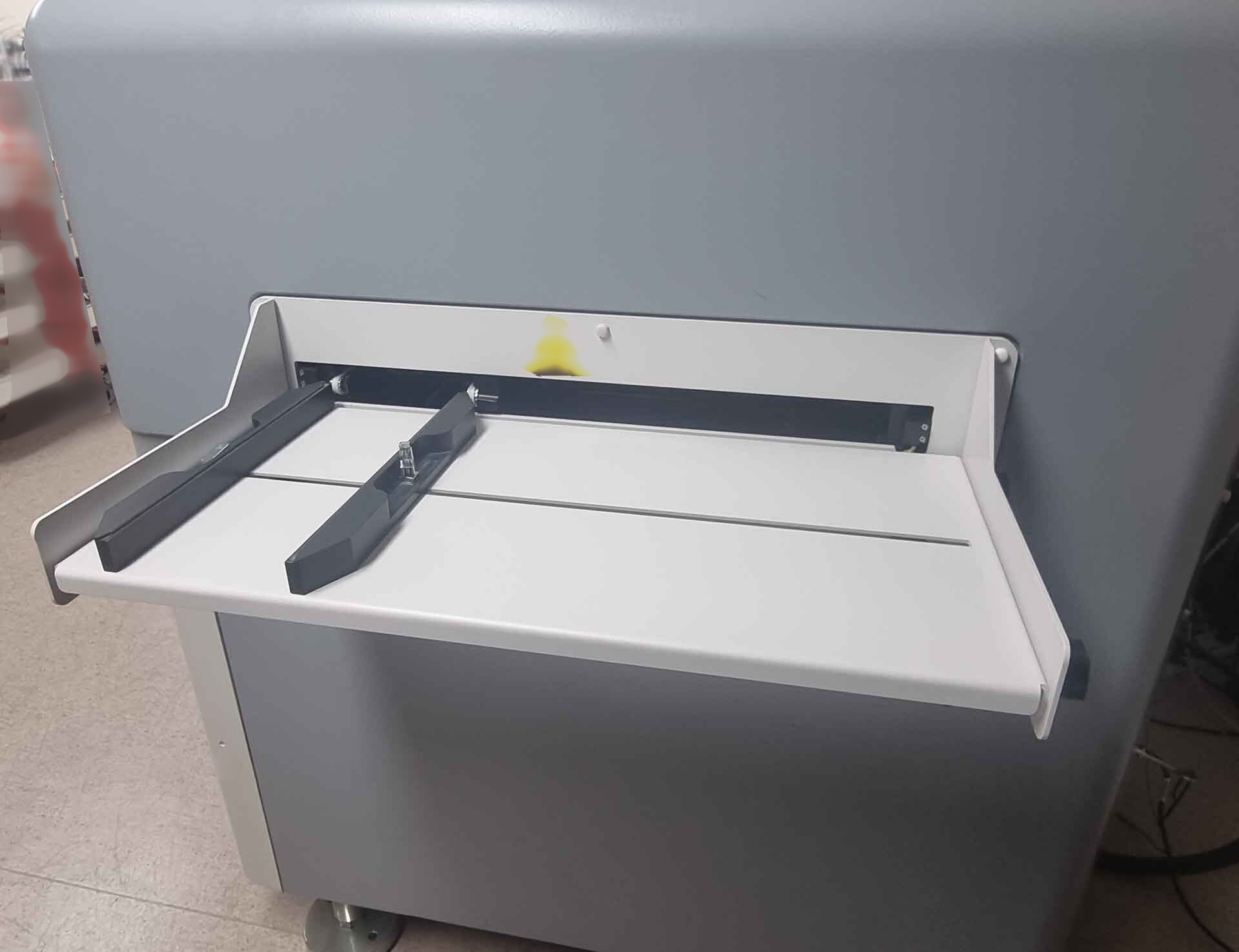

판매용 중고 MYDATA MY 500 #293664679

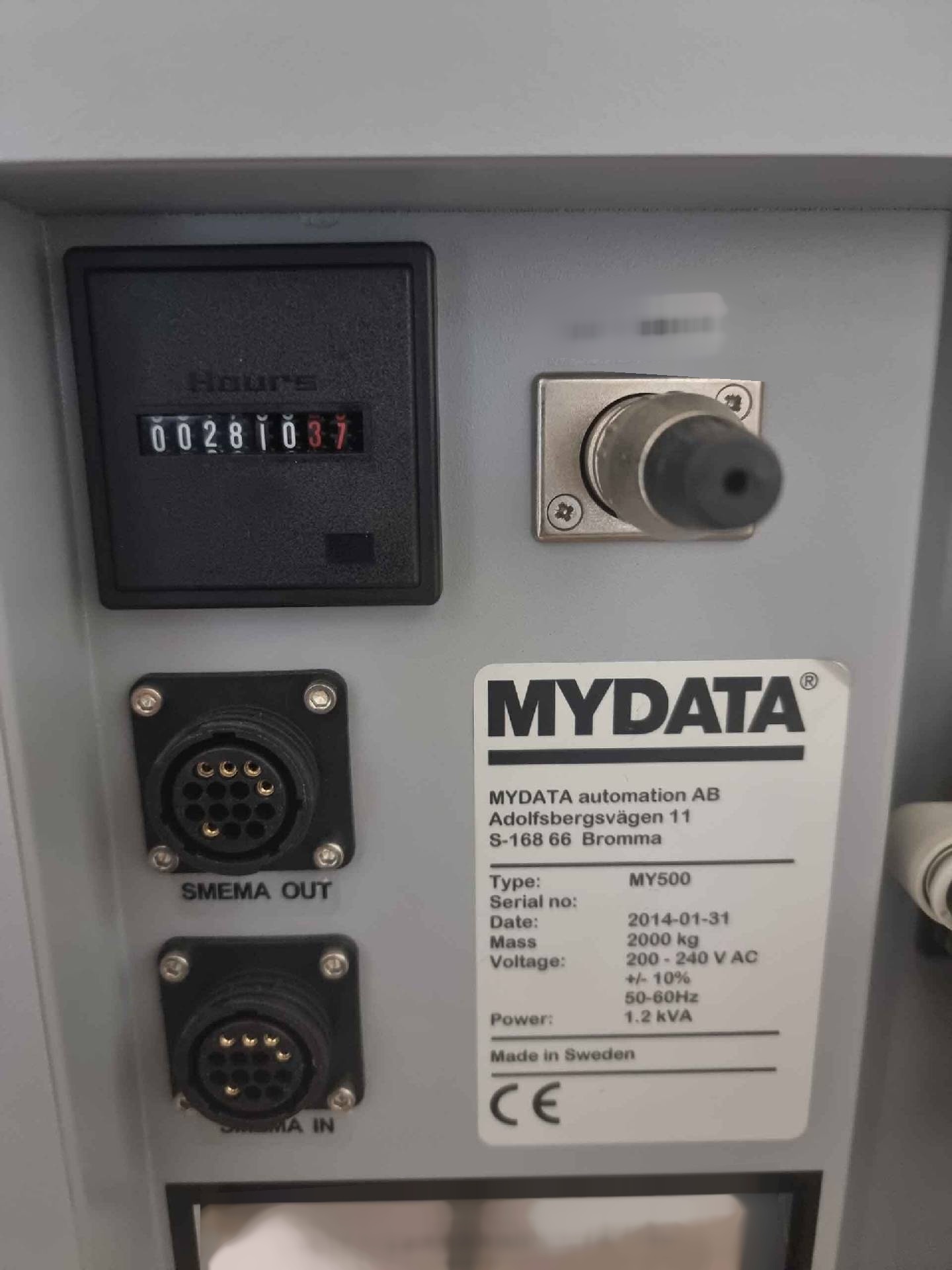

Jet solder paste printer Running hours: 2,810 Rated speed (cph equivalent): 30,000 cph Reference board throughput : 28,000 cph Single dot repeatability 3s (X, Y): 54 μm Single dot accuracy @ Cpk=1.33 (X, Y): 80 μm Deposit accuracy @ Cpk=1.33 (X, Y) QFP100C: 33 μm Deposit accuracy @ Cpk=1.33 (X, Y) 0603: 40 μm Deposit repeatability 3s (X, Y) QFP100C: 19 μm Deposit repeatability 3s (X, Y) 0603: 24 μm Dot range: Minimum dot diameter: 0.33 mm (0.013") Maximum dot diameter: 0.47 mm (0.019") Minimum dot volume: 5 nl Maximum dot volume: 15 nl Single dot volume repeatability (5 nl dots): 12% Single dot volume repeatability (15 nl dots): 8% Deposit volume repeatability, QFP100C: 4.0% Deposit volume repeatability, 0603: 3.5% Board handling: Maximum board size: 508 x 508 mm (20" x 20") Minimum board size: 70 x 50 mm (2.7" x 2") Board thickness range: 0.4 - 6.0 mm (0.016"- 0.24") Board edge clearance, top: 3 mm (0.12") Board edge clearance, bottom: 4 mm (0.16") Bottom side clearance 20 mm (0.79") Max board warp / bow / twist: ±2 mm (0.08") Max board weight: 5 kg (11 lbs) Board transport height: Conforms to SMEMA standard for conveyor height Height adjustable from 880-975 mm (34.6"- 38.4") Operation mode: Inline, manual, inline odd-board, right-to-left, left-to-right Power requirements: Single phase, AC 1700 VA Power consumption: 1200 W Voltage: 200-240V, ±10%, 50/60 Hz (100-120V ±10%, 50/60 Hz) Air supply: 6 bar, 250 l/min Ambient temperature: +18°C to +30°C, 30-80% RH non-condensing 2014 vintage.
