판매용 중고 MEK M22XGTAZ-350 #293822194

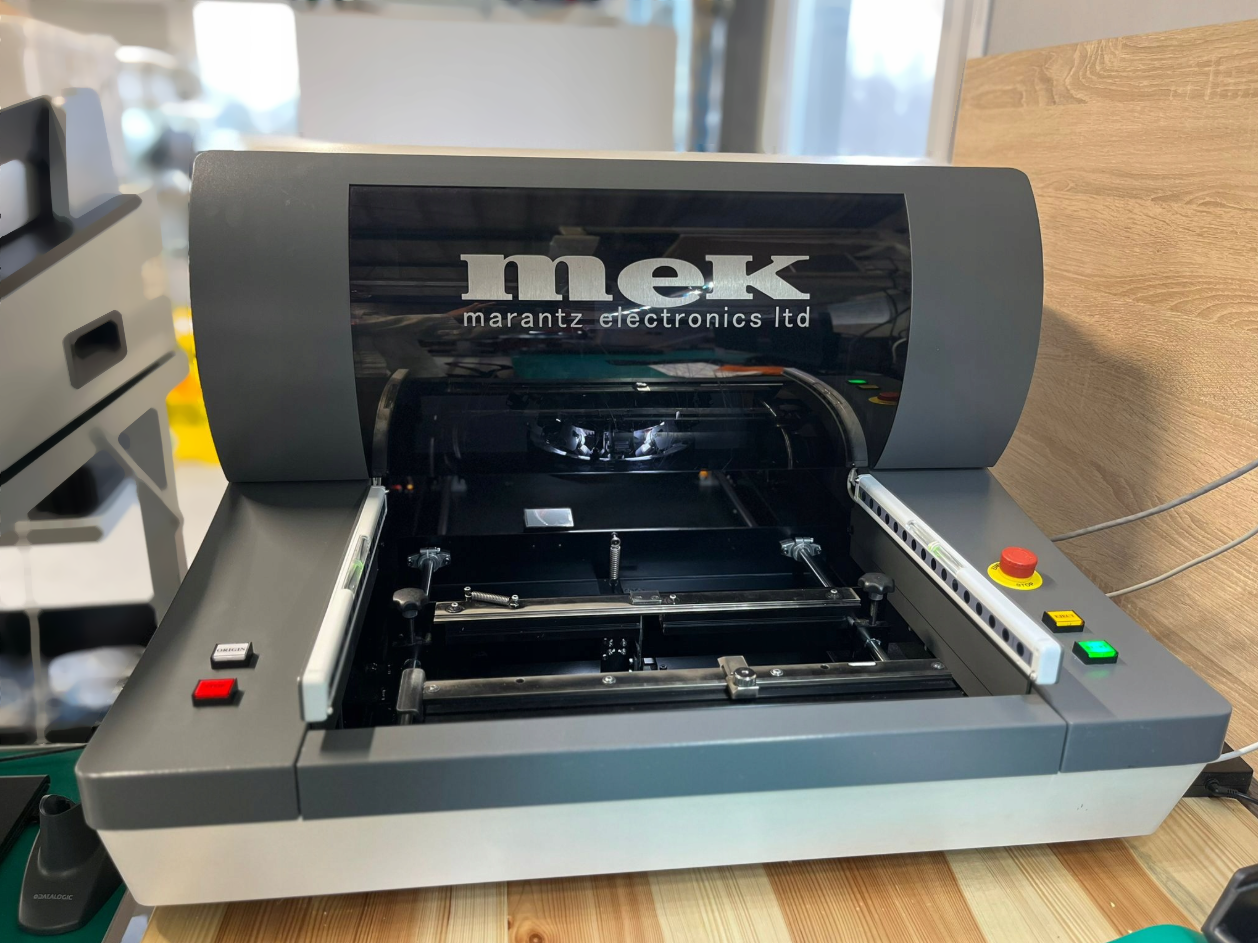

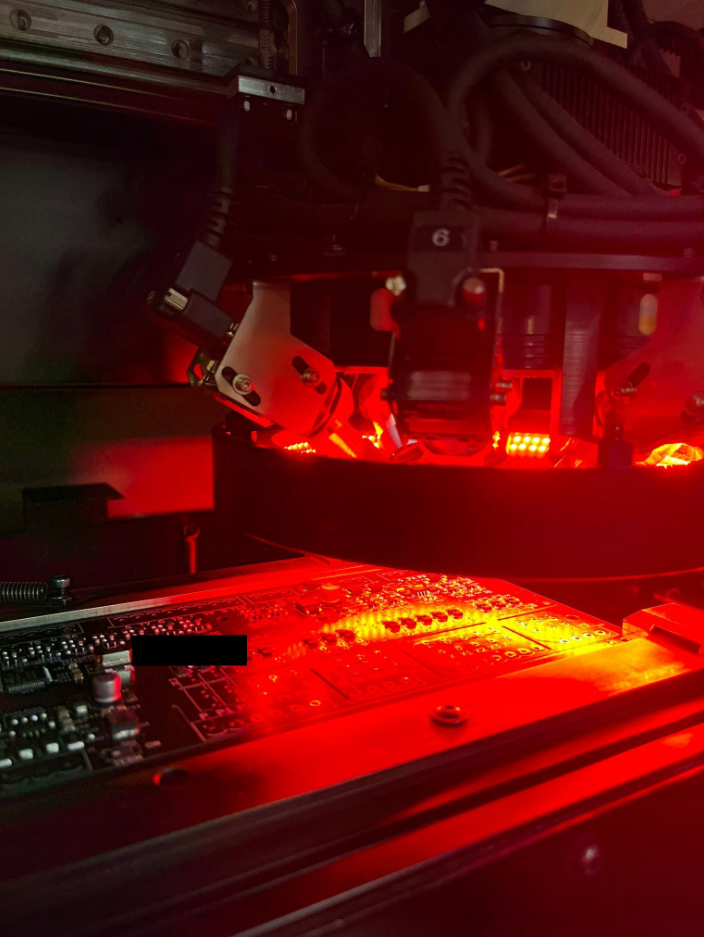

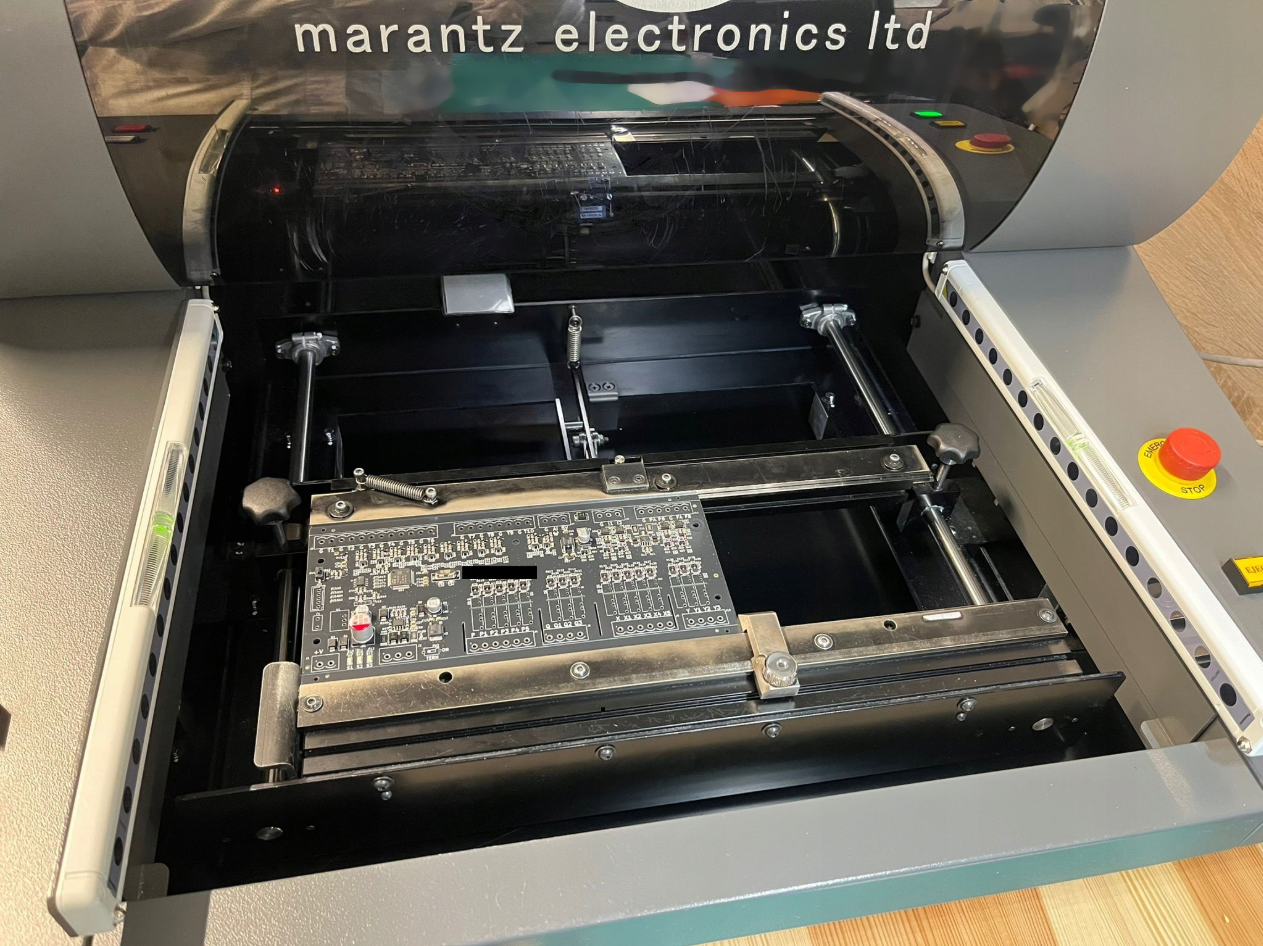

2D Automated Optical Inspection (AOI) system Power supply: AC 100–240 V Frequency: 50/60 Hz Consumption: 3.0 A Main high‑resolution top‑view camera 8-colours camera: 10 µm Tilt & Shift technology: 45° Signal multiplexer: live preview from up to 9 cameras Multi‑directional LED lighting system: Coaxial (on‑axis) Angled Ring LED High‑intensity white illumination Apple Mac mini control computer: 32 GB RAM Multi‑sensor optical inspection: up to 350 mm Motorized Z‑axis: 30 mm High‑grade telecentric optics Main camera resolution: 18.6 µm Top / bottom clearance: +30 mm / −70 mm Inspection capability: down to 01005 components (10 µm camera) 2018 vintage.
